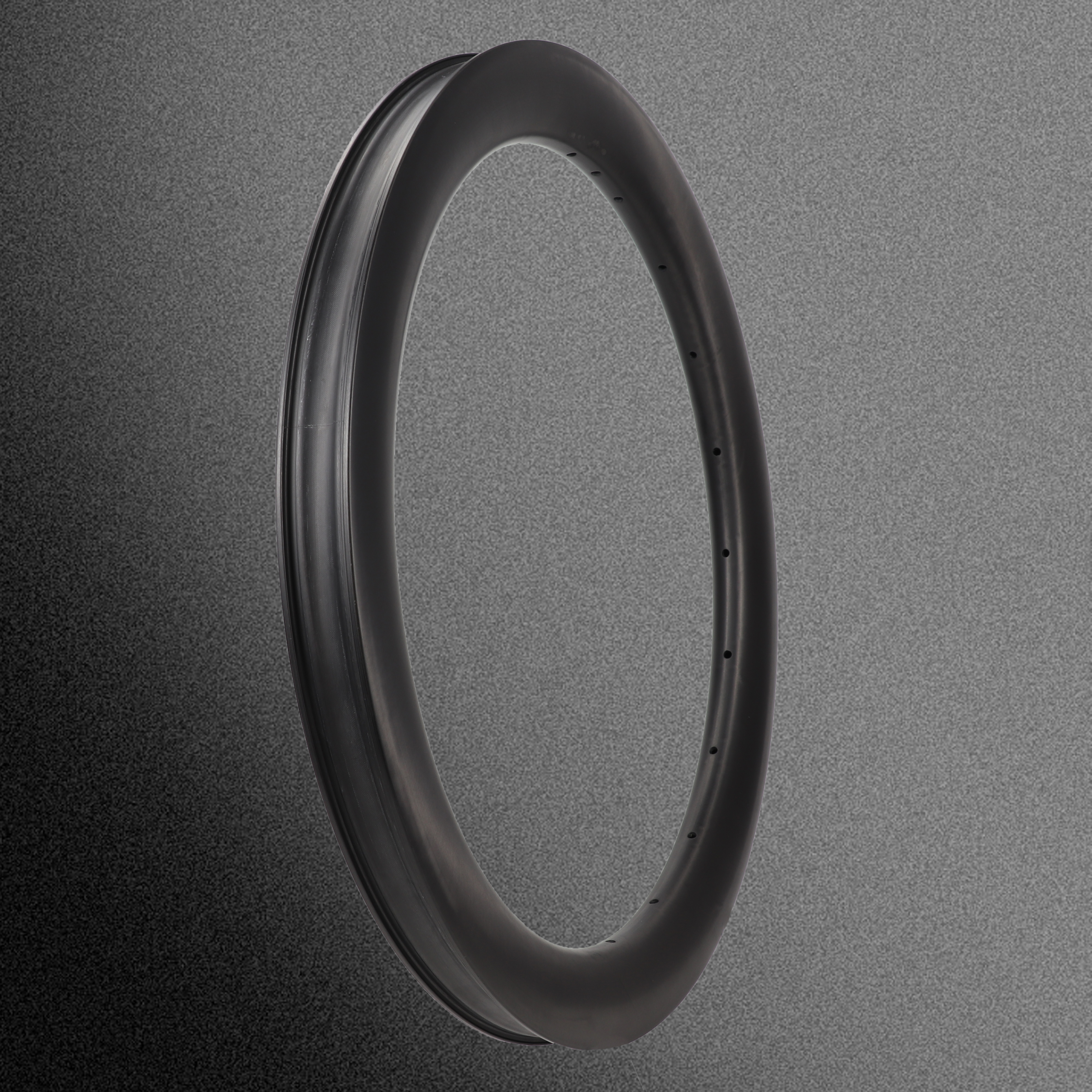

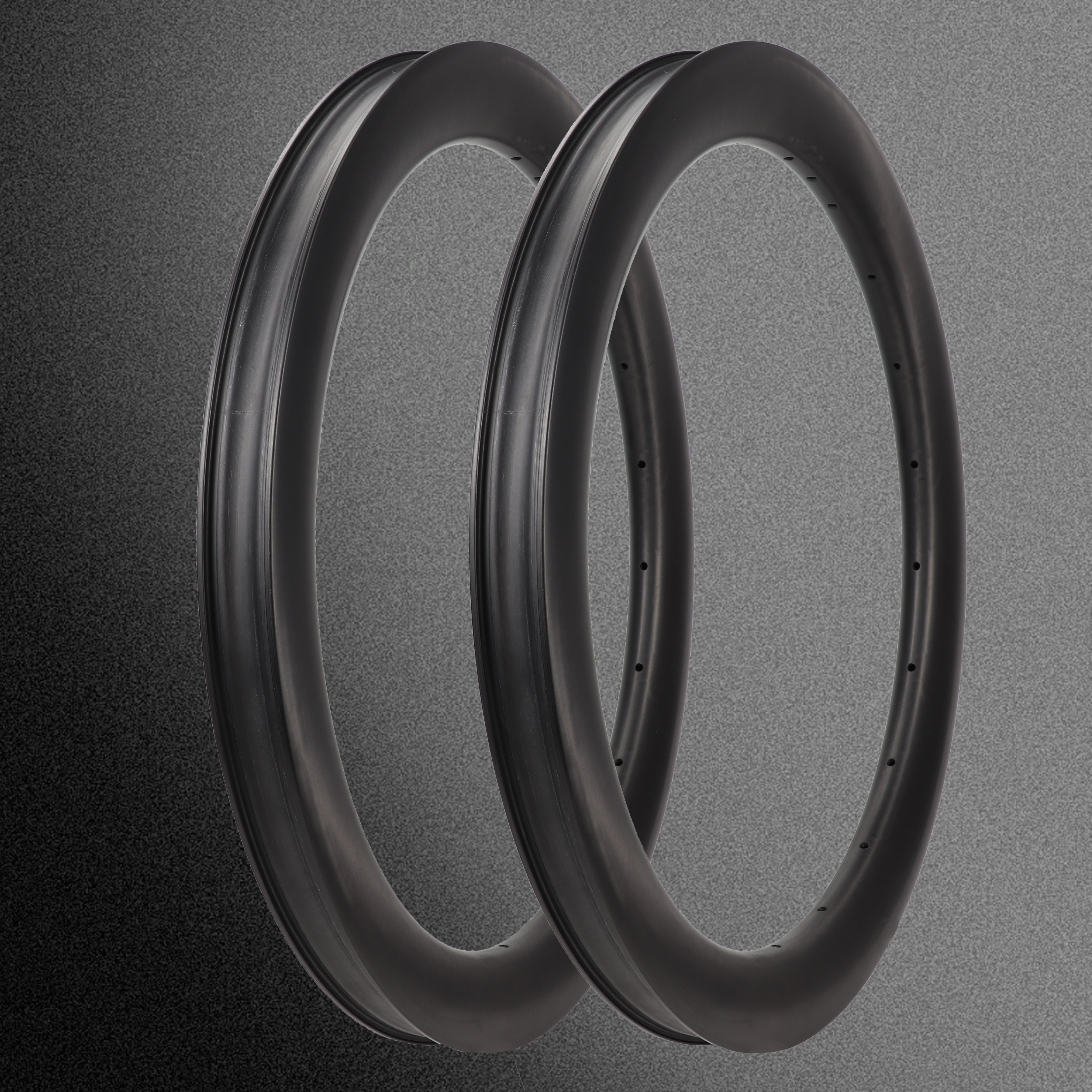

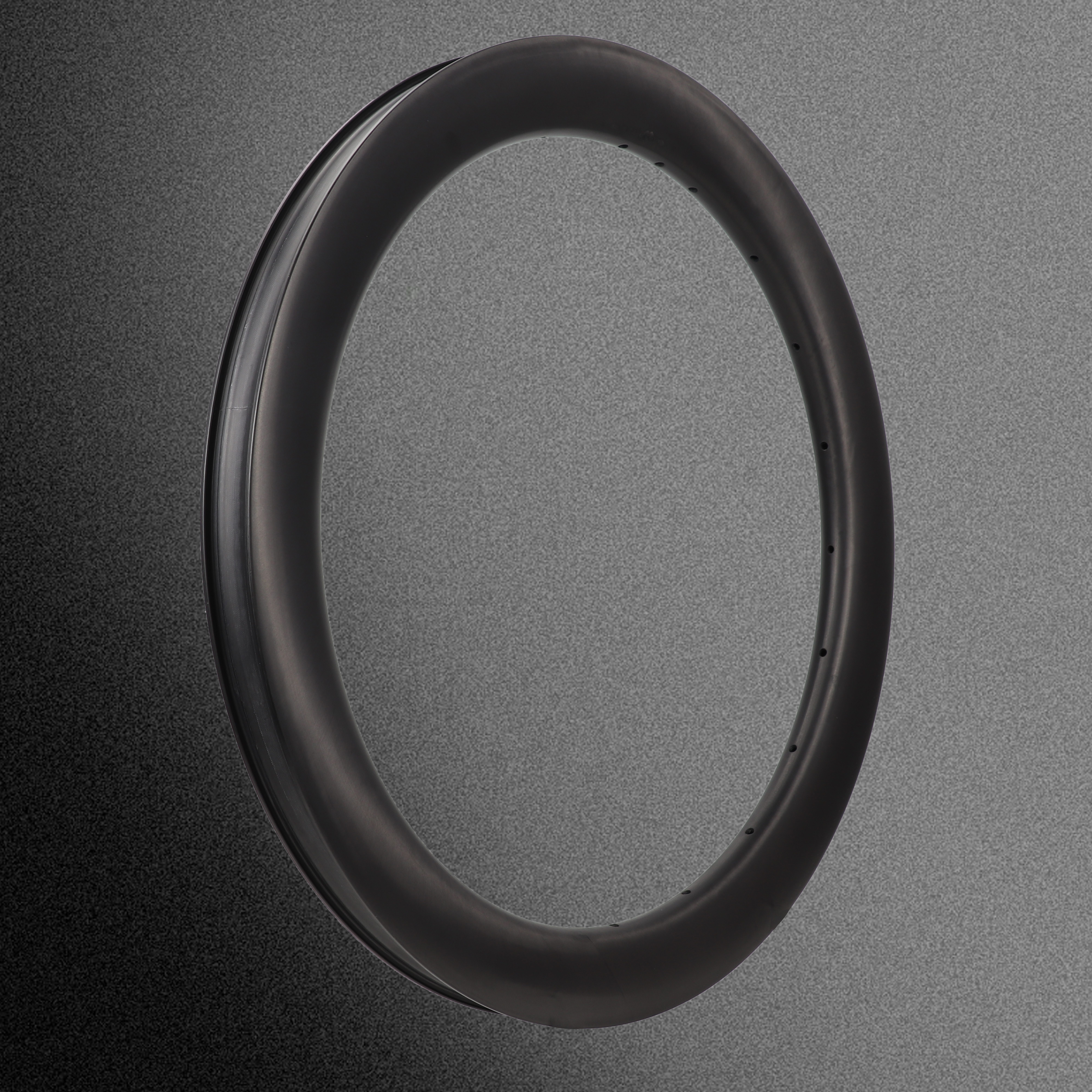

Key Product Features

• Maximum Aerodynamic Performance Engineered for maximum aerodynamics, optimal rolling efficiency, and peak racing speed.

• Lightweight & Versatile Design Features a lightweight, sturdy, and aerodynamic build that ensures a more comfortable ride, faster rolling performance, and stronger grip—perfect for versatile gravel or off-road racing.

• High-Stiffness Carbon Spokes Built with high-tensile carbon spokes, providing high stiffness and an ultra-lightweight advantage for high-speed racing and quick acceleration response.

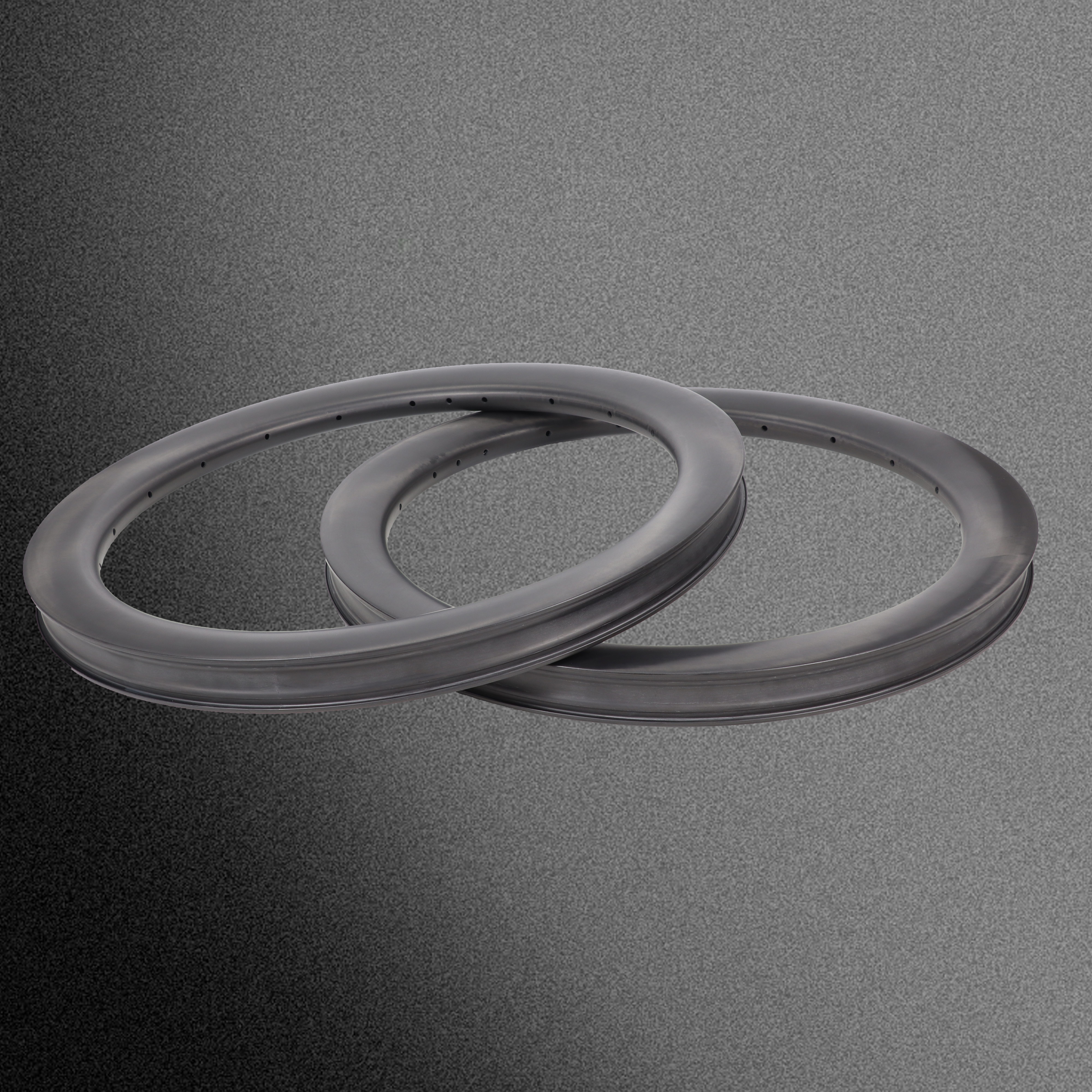

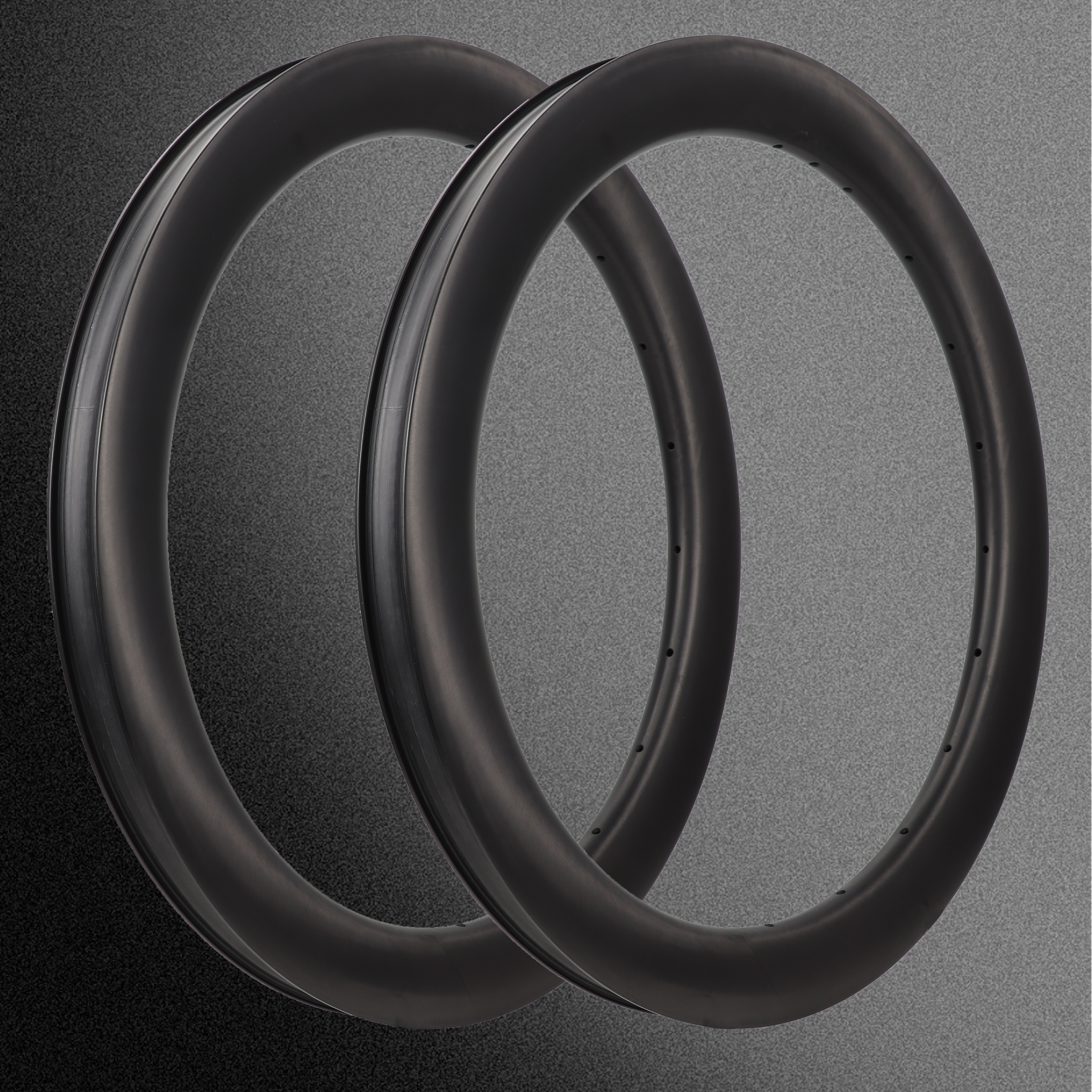

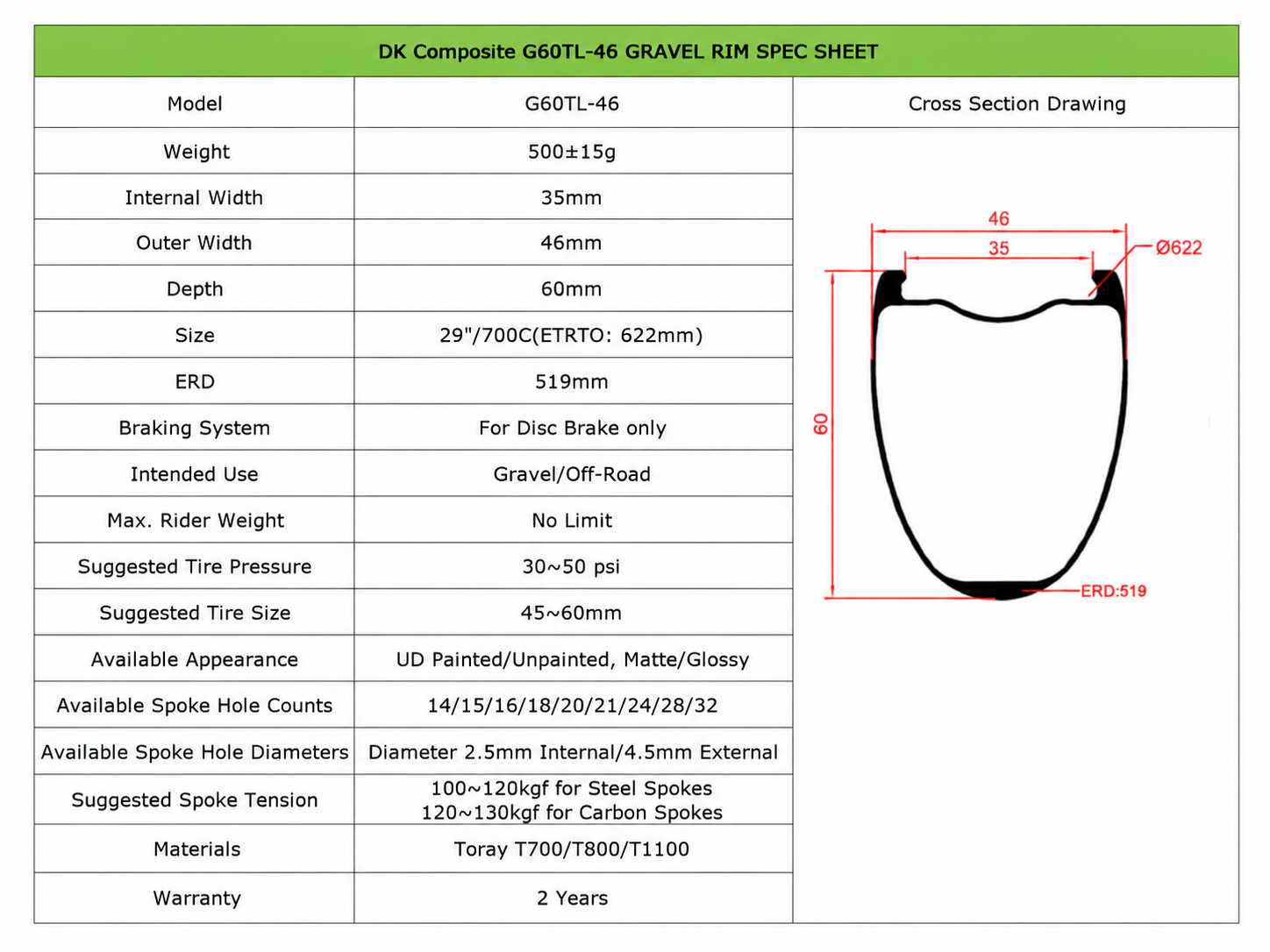

• Optimized Modern Aero Dimensions Designed with a 60mm depth, 35mm internal width, and 46mm outer width—delivering a seamless combination of aero speed and modern aesthetic appeal.

• Premium Carbon Fiber Construction Crafted with premium Toray T800~T1000 carbon fiber materials and an optimal lamination design, guaranteeing a highly stable and ultra-durable product quality.

Product Development Process

1 Layup / Pre-molding Process

Precision Automated Cutting

Using premium Toray T800 & T1000 carbon prepreg, every layer is precisely cut by automated CNC machinery into exact angles and dimensional profiles to ensure perfect structural alignment.

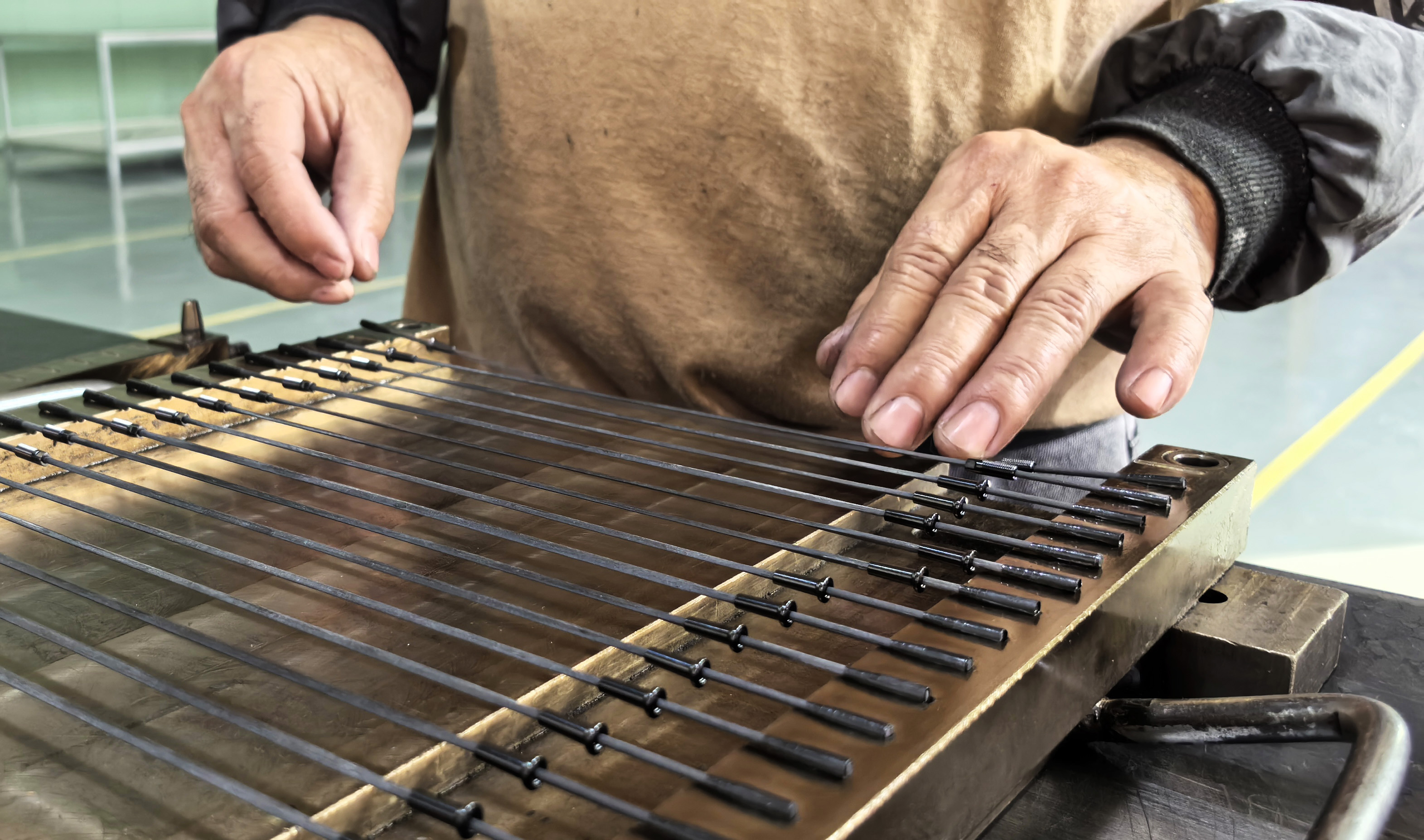

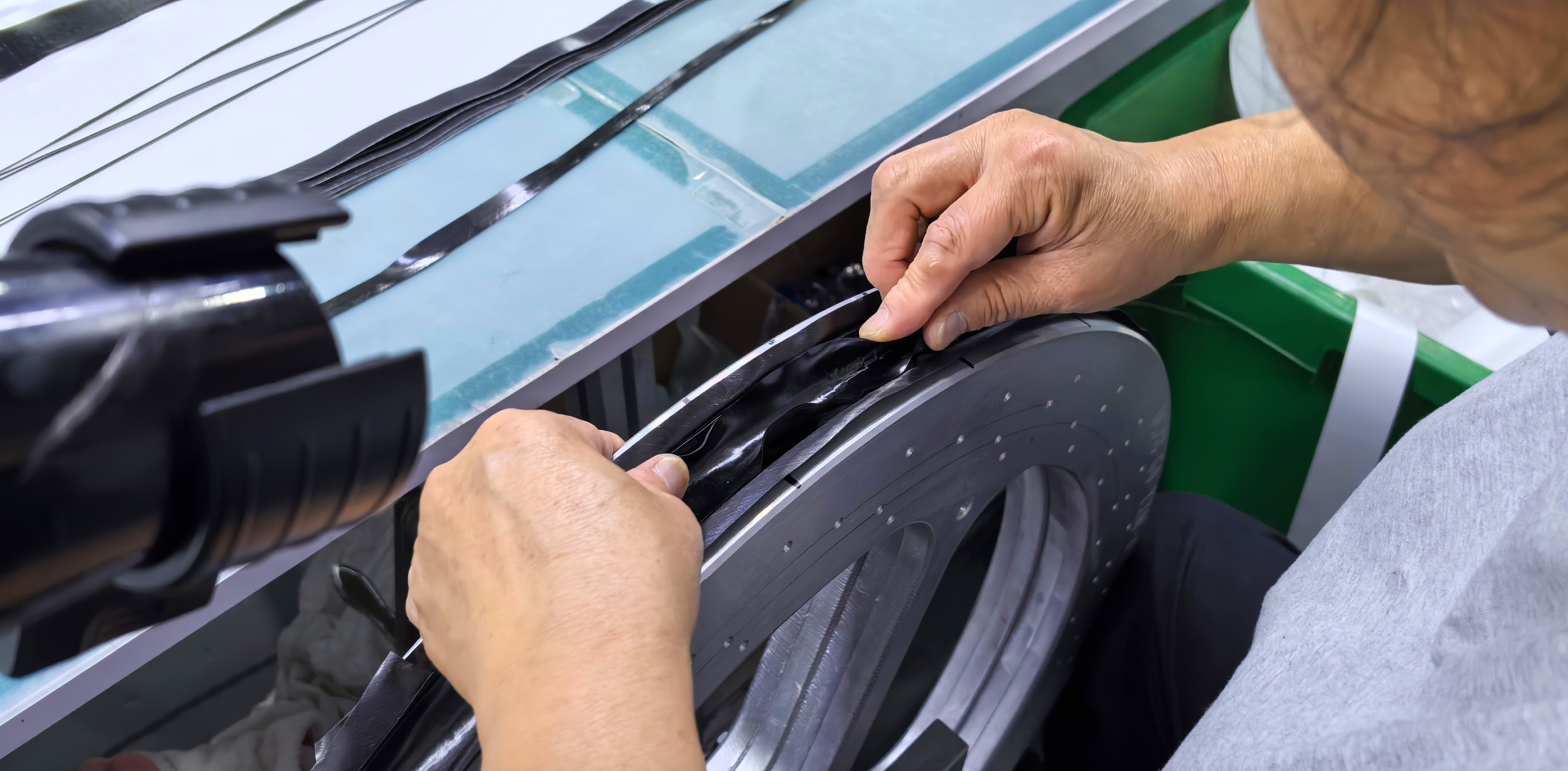

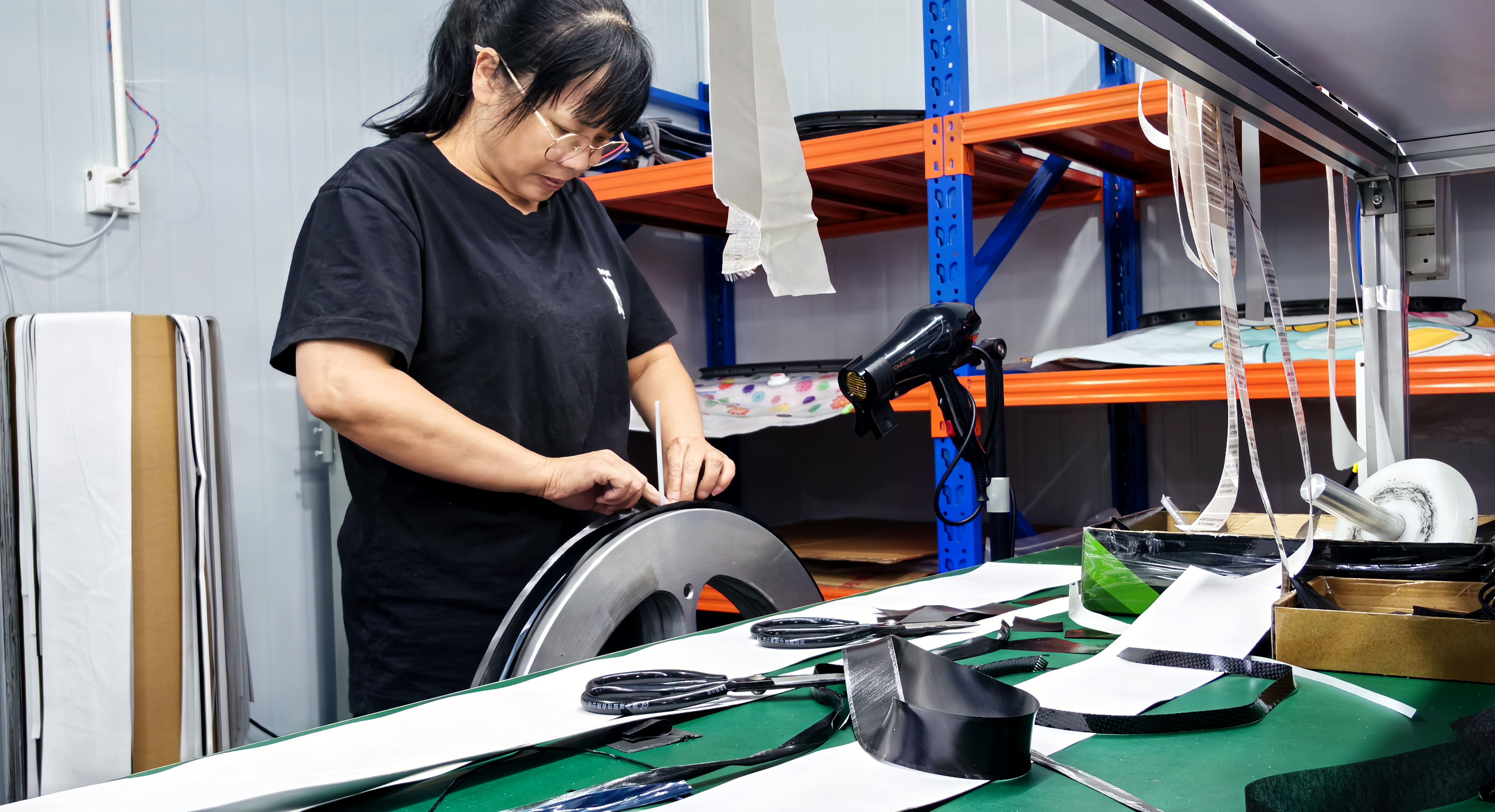

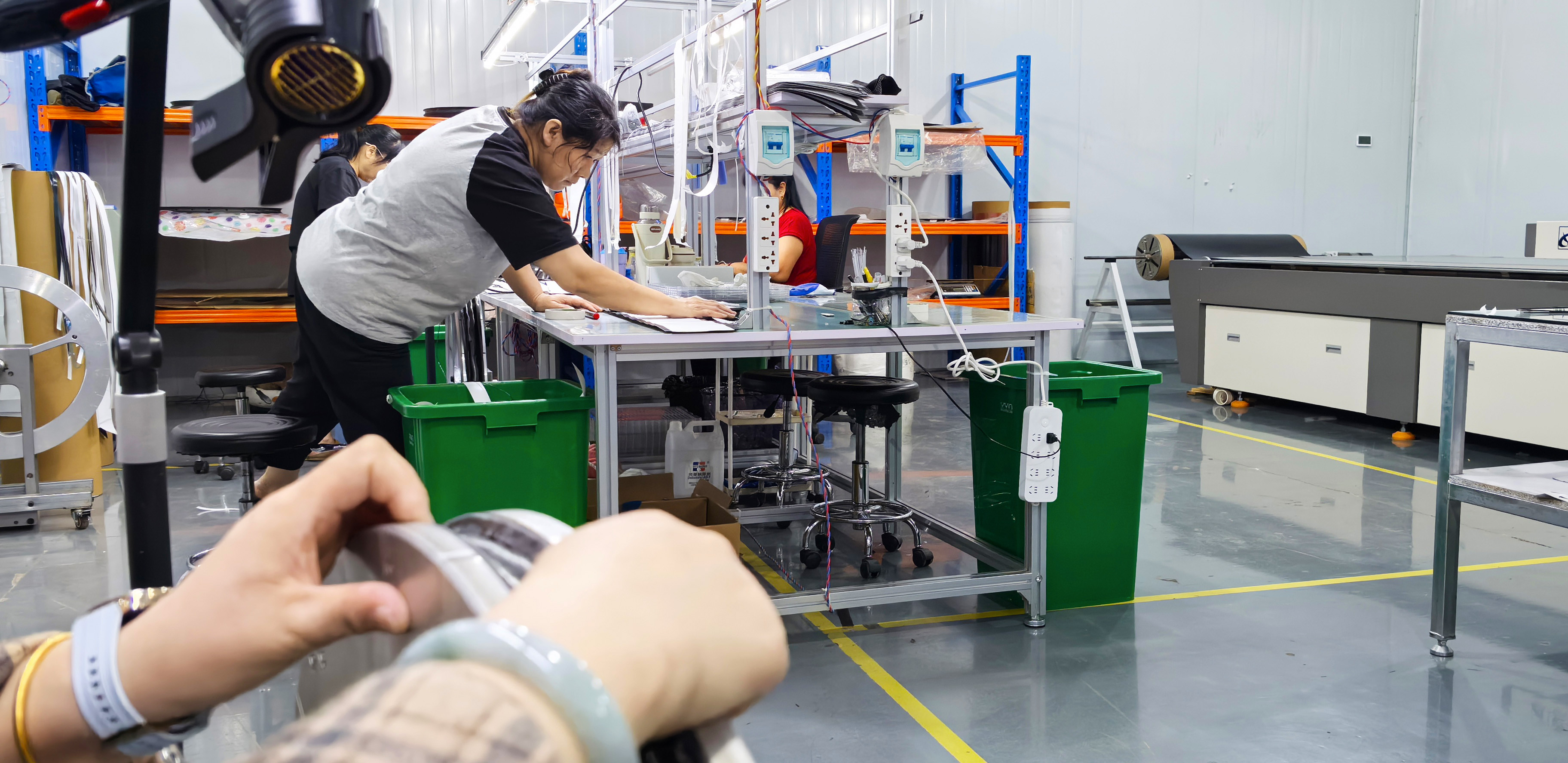

Multi-Angle Manual Lamination

Skilled technicians lay up carbon sheets in precise directional schedules (0°, 45°, 90°). This optimized schedule maximizes lateral stiffness, impact resistance, and structural strength.

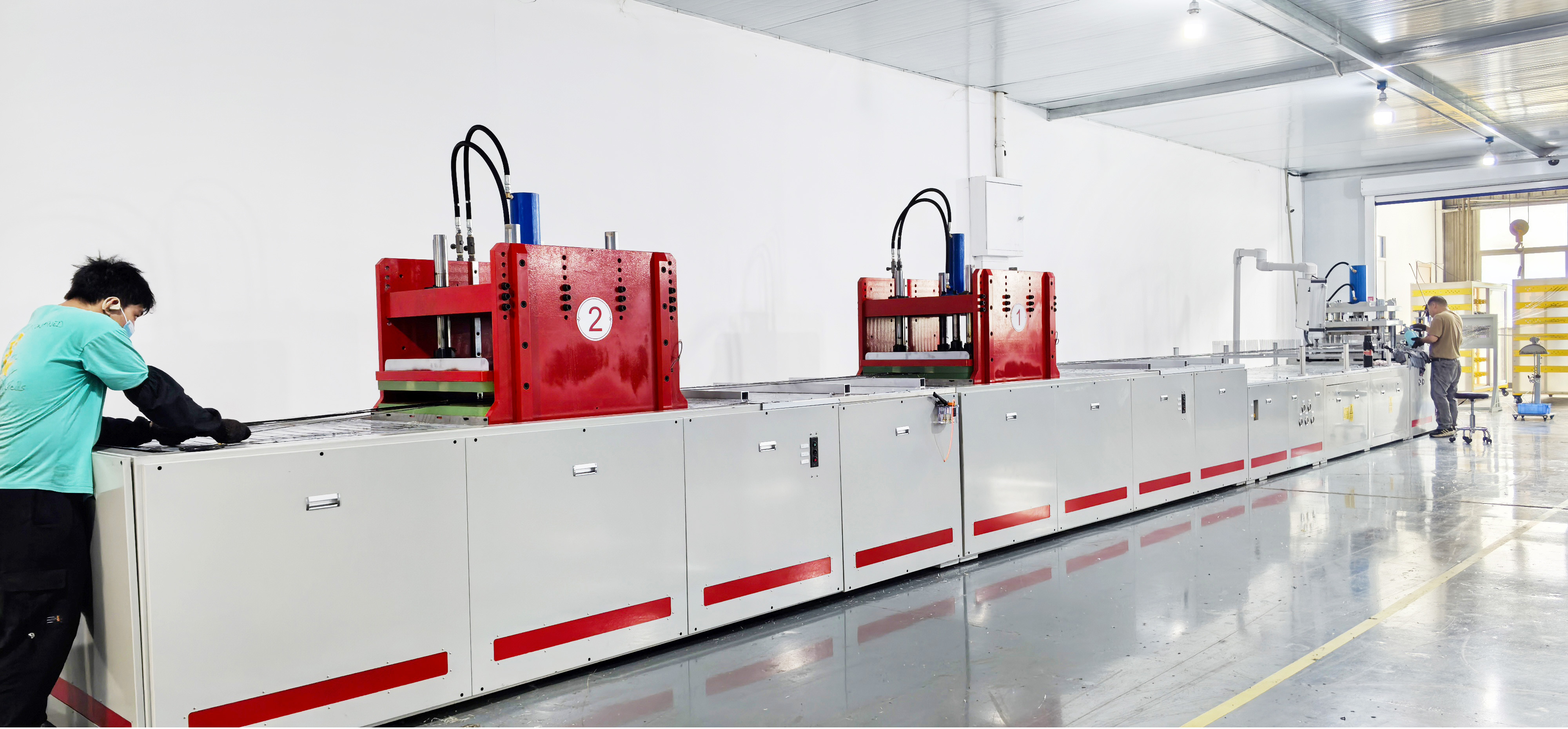

Automated Carbon Roll Pre-cutting

High-quality carbon fiber prepreg rolls are continuously fed and pre-cut with strict material tension control, laying a consistent, zero-defect foundation before manual lamination.

2 Molding Process

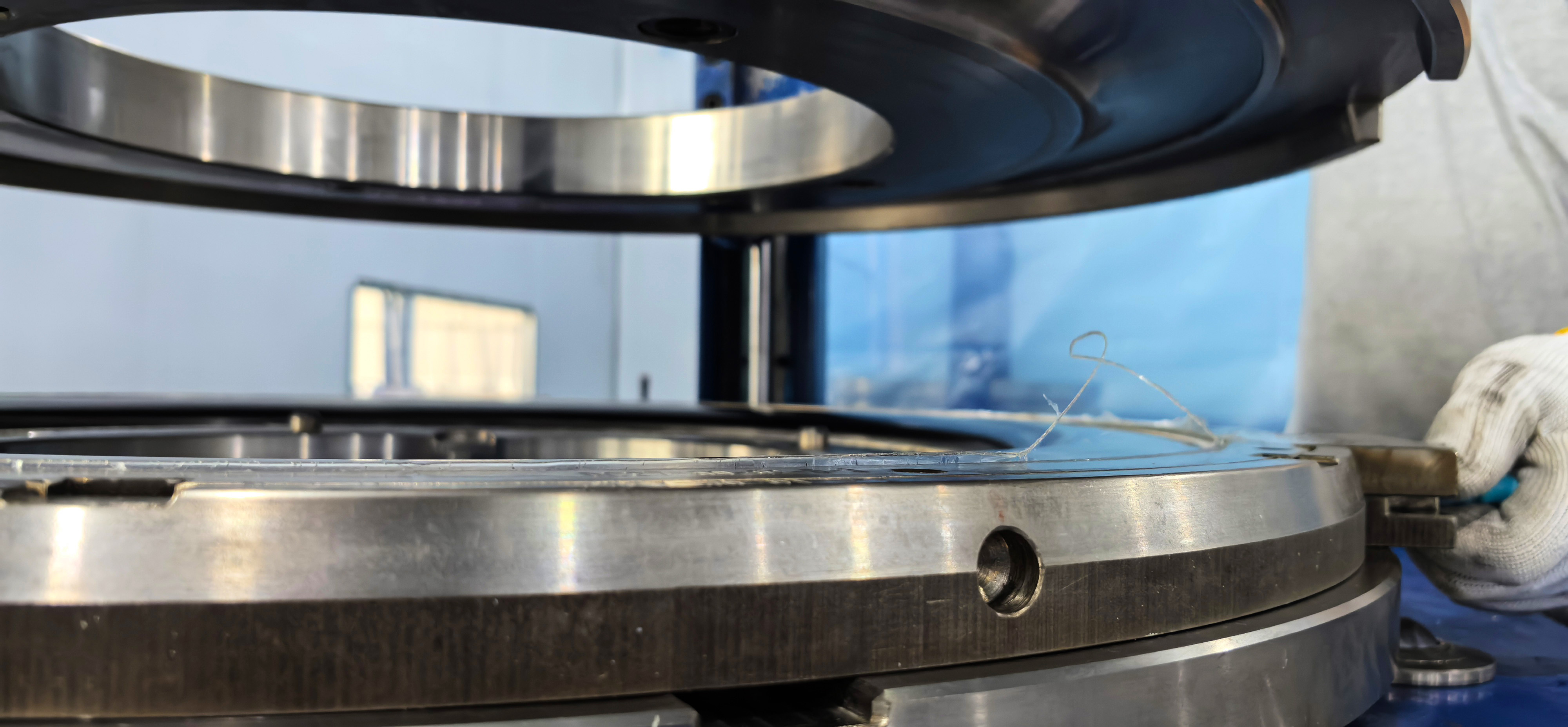

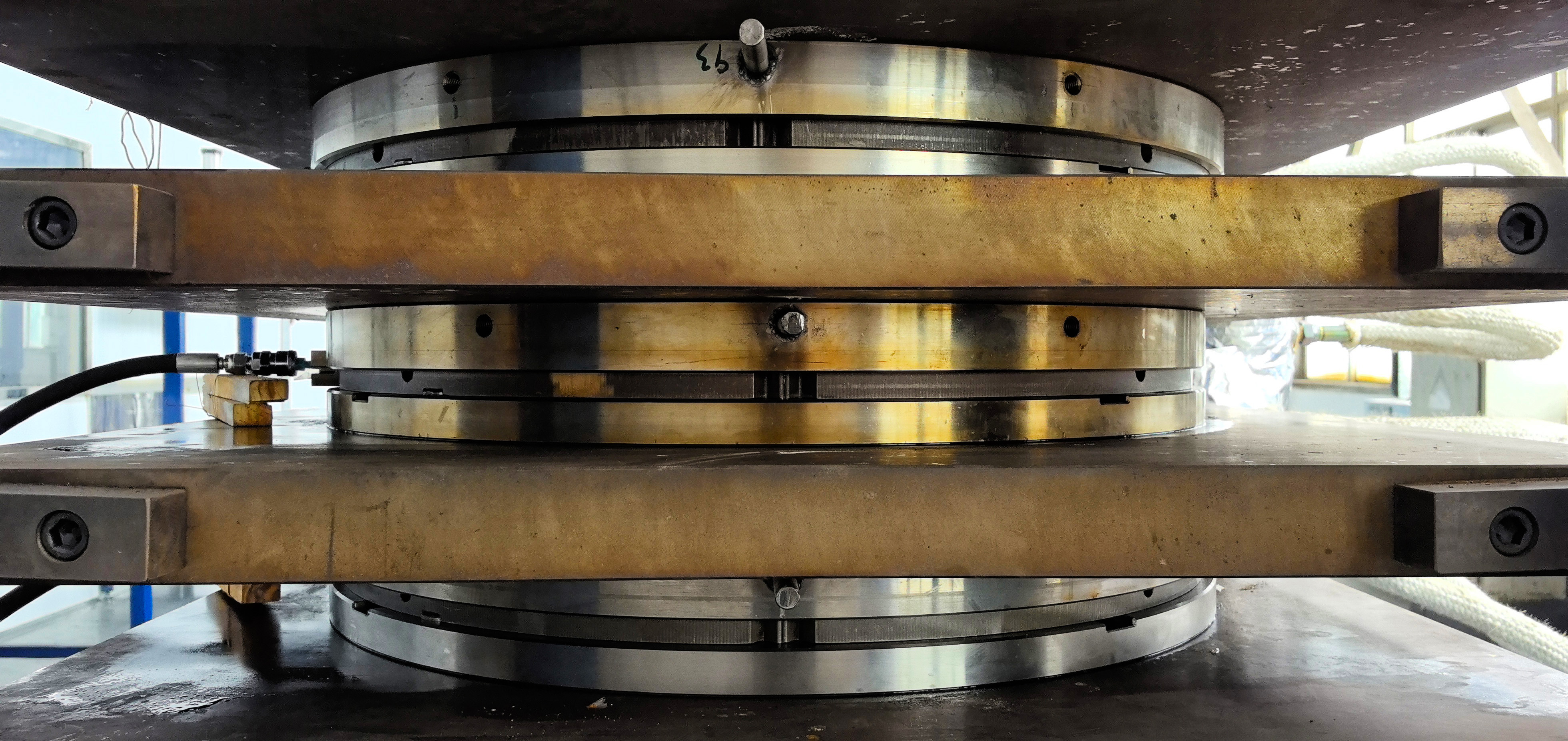

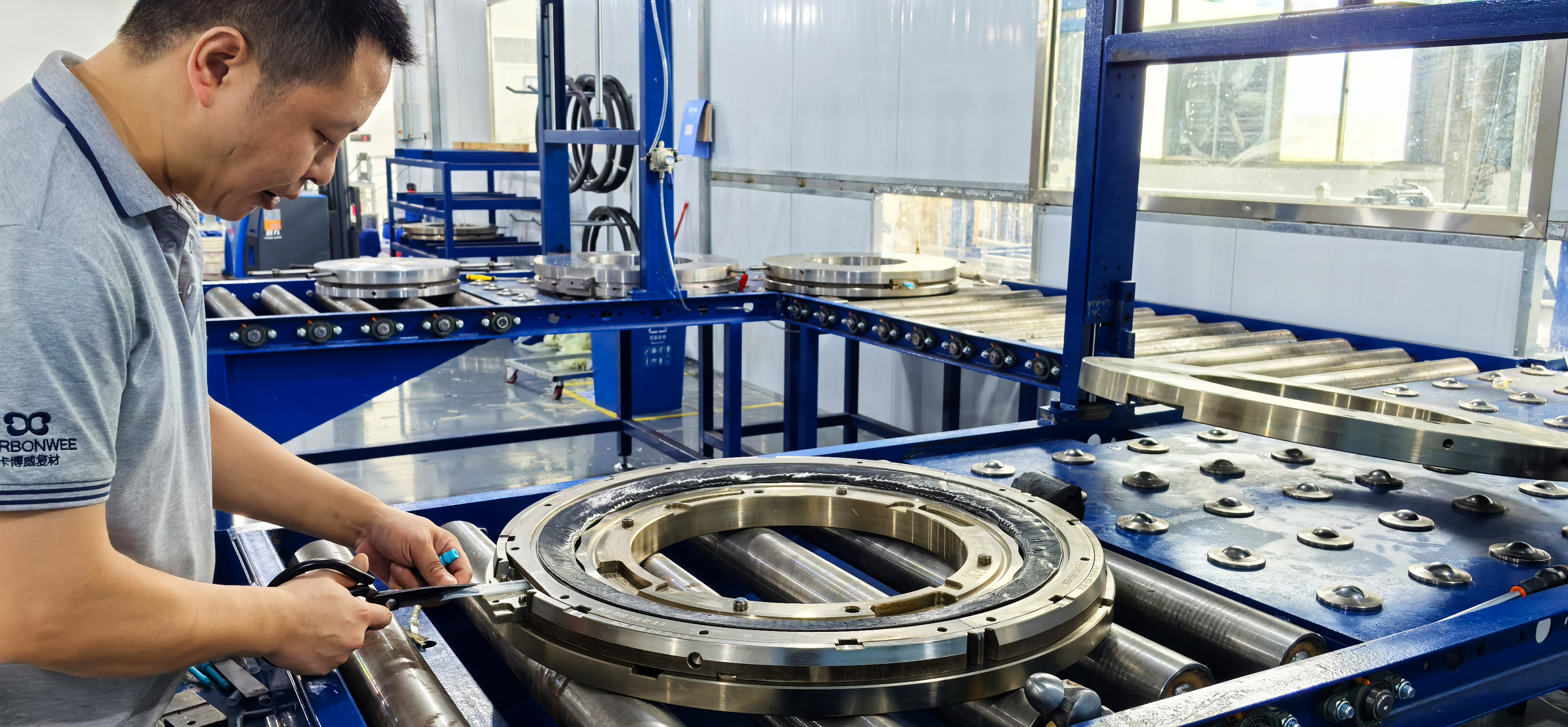

High-Precision Mold Preparation & Alignment

Pre-molded rim blanks are carefully aligned in high-strength alloy molds. Strict temperature and pressure monitoring ensures flawless compaction and seamless carbon layer bonding during curing.

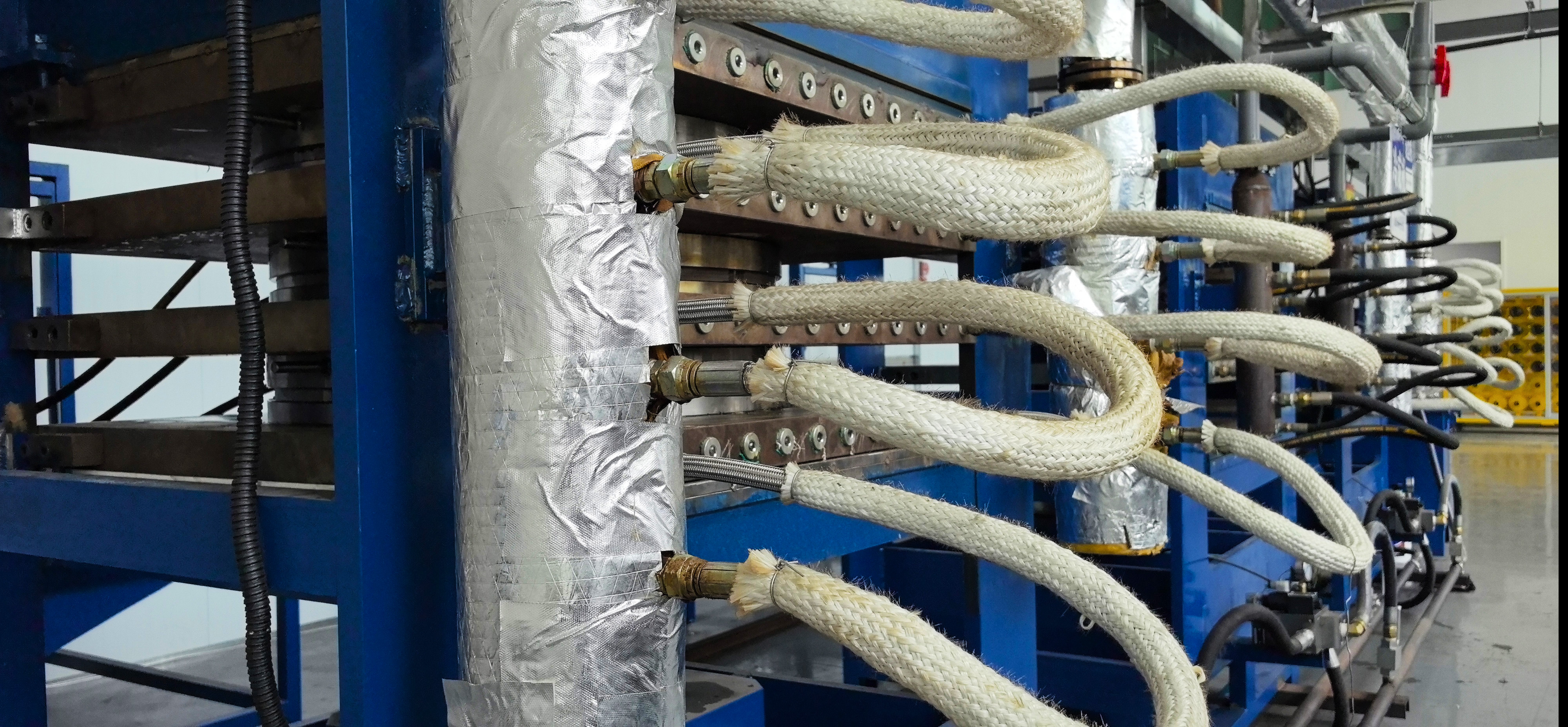

Thermal Curing & De-molding Quality Control

Rims undergo controlled hot-press curing under extreme pressure to eliminate air voids. Once de-molded, each rim is rigorously inspected for structural integrity and surface smoothness.

3 Machining

❮❯

❮❯

❮❯

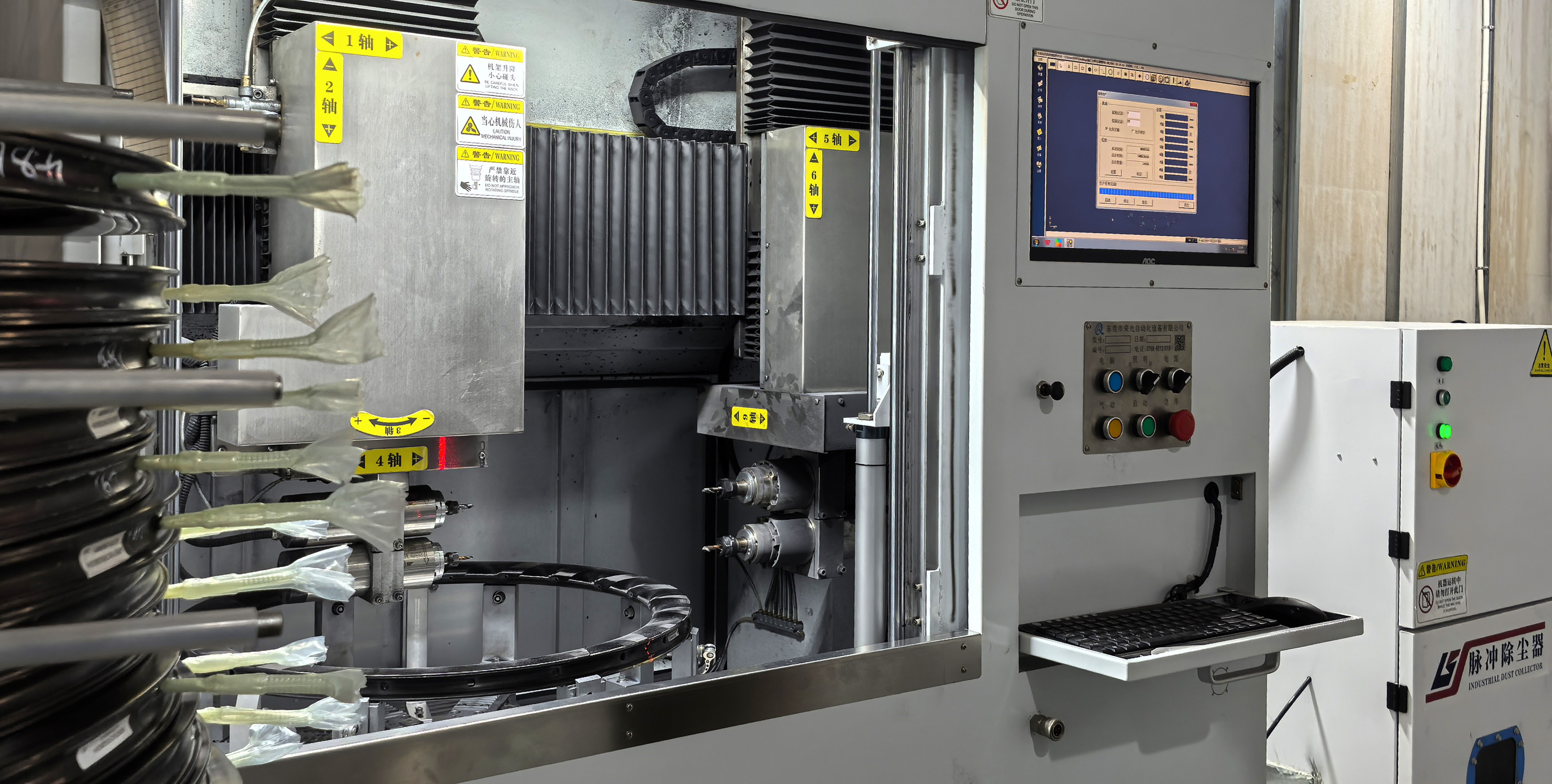

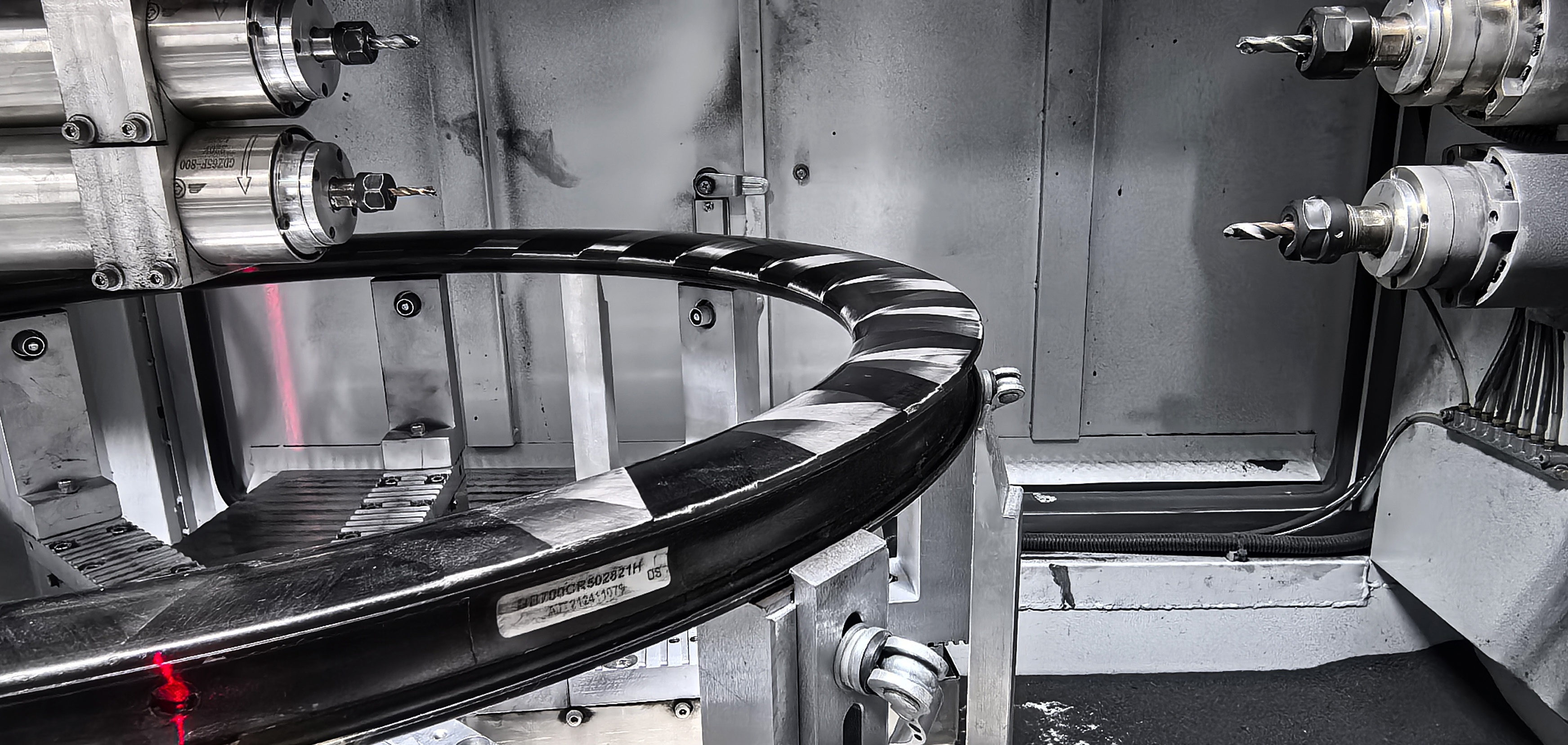

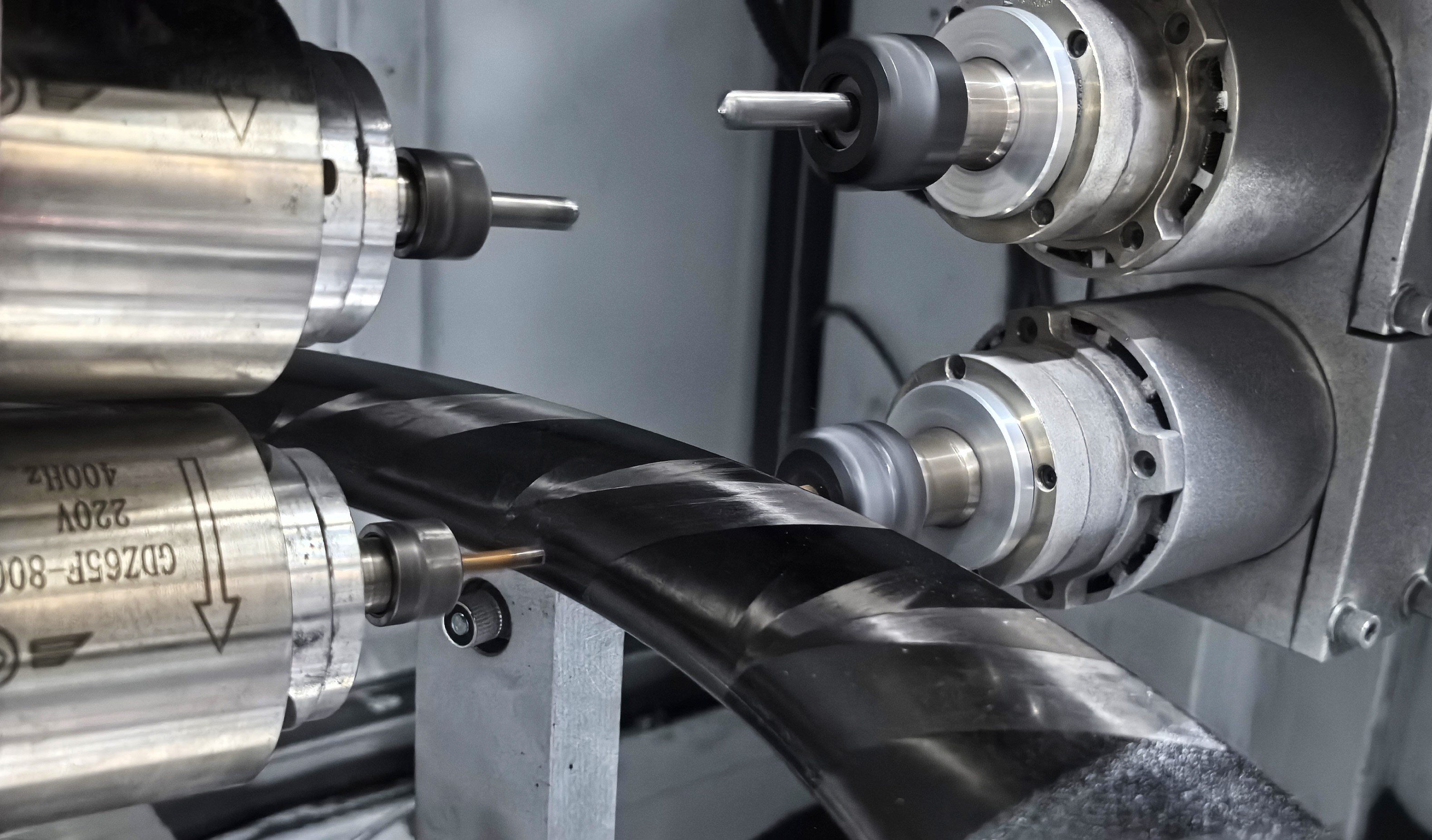

Automated 3D CNC Drilling Multi-axis CNC drilling delivers precise spoke hole angles, preventing nipple binding.

Precision Valve Hole Machining CNC reaming ensures ultra-clean valve holes and smooth inner surfaces.

Drainage Hole Milling Precisely machined water drainage ports allow rapid moisture release during wet riding.

Edge De-burring & Inspection All drilled edges are deburred and optically checked for zero micro-cracks.

4 Painting / Decaling Process

Custom Decaling & Precision Coating

Applied with precision in dust-free conditions, seamlessly integrated under a clear coat for lasting aesthetics.

EXPLORE FINISH OPTIONS

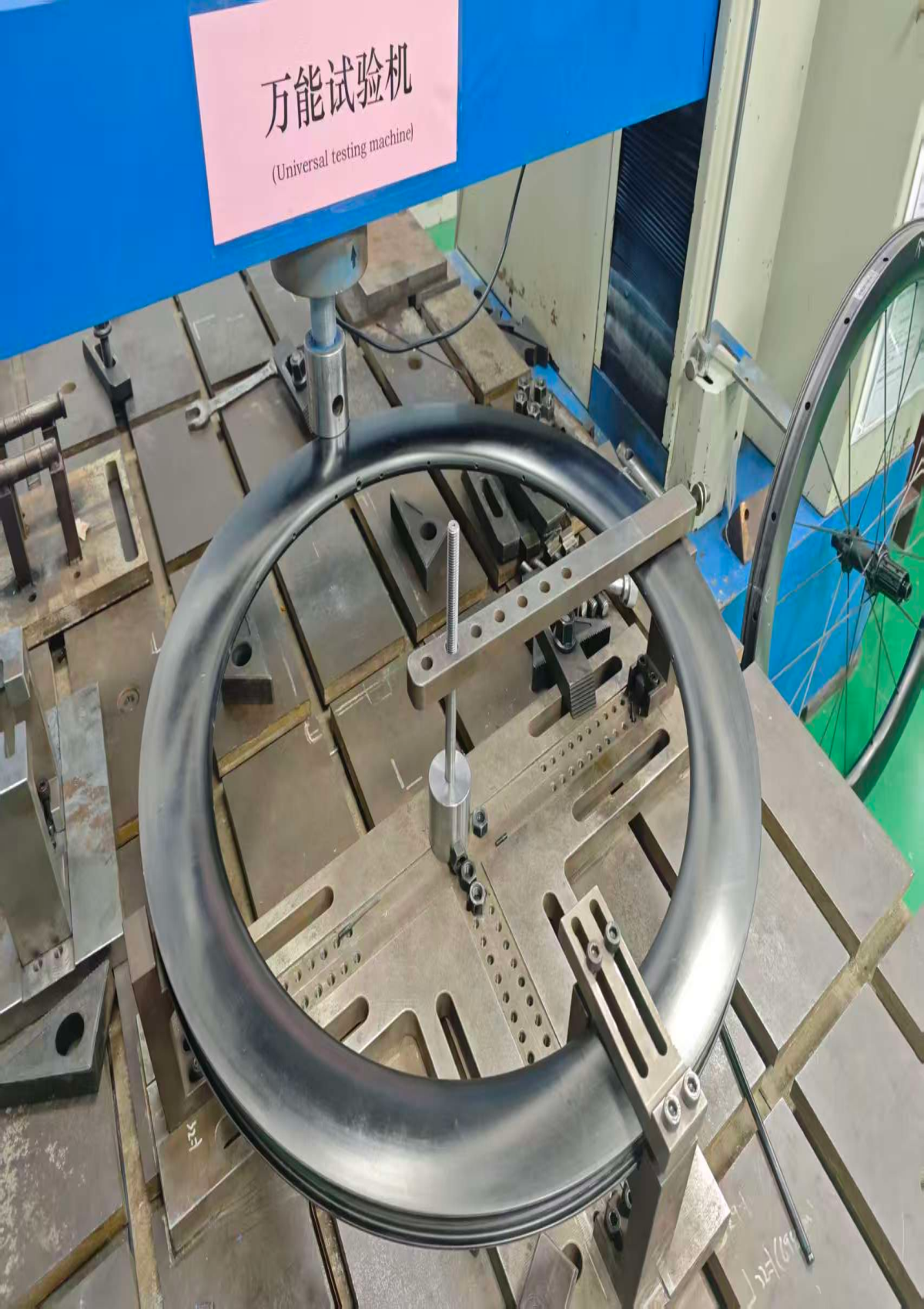

Lateral Stiffness Test

Evaluates side-to-side rim deflection under high lateral loads.

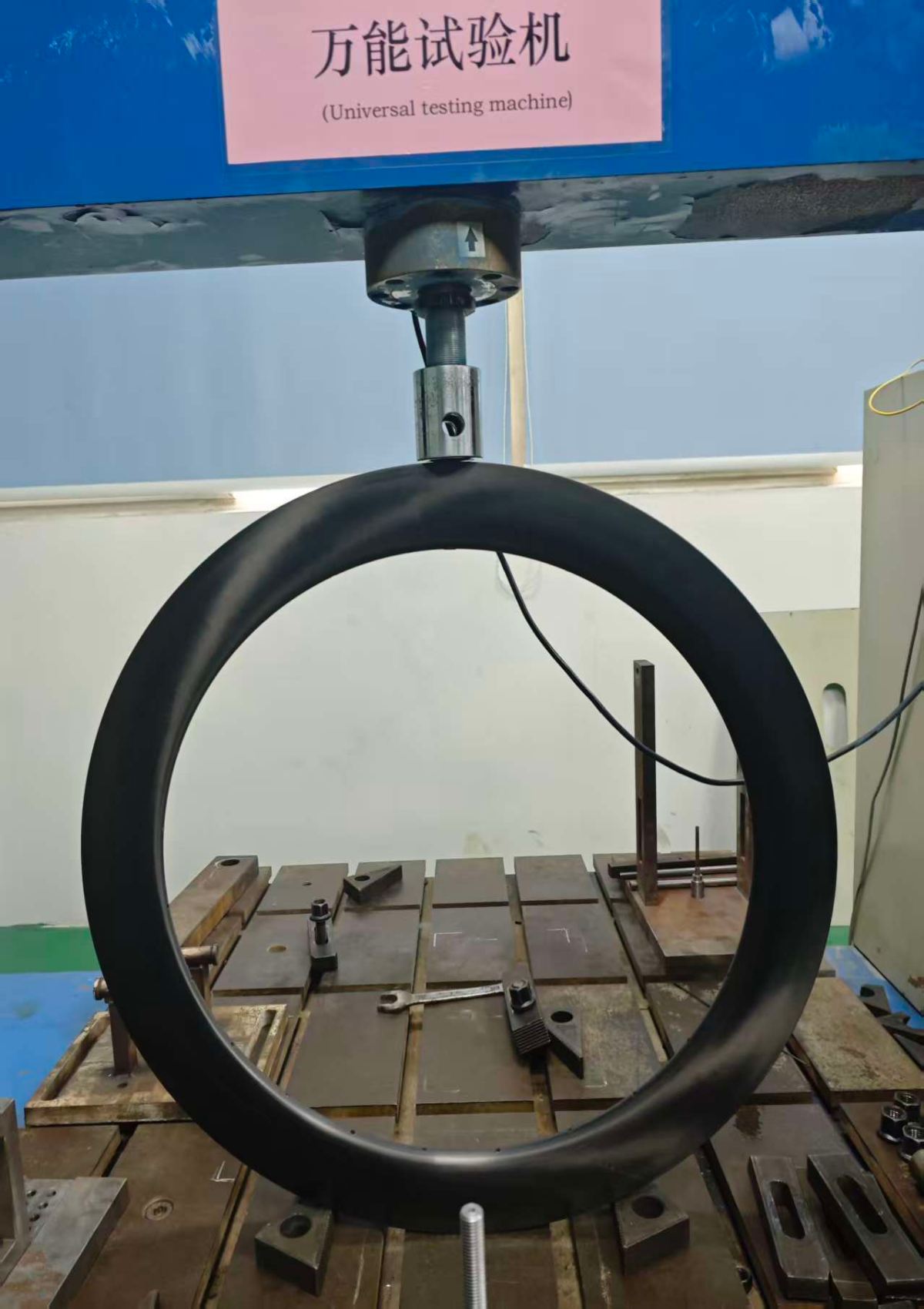

Radial Stiffness Test

Measures vertical compliance and deformation under heavy downward loads.

Drop Weight Impact Test

Simulates harsh road impacts using ISO-standard falling weights.

Spoke Tension Test

Verifies tension balance across spokes to prevent wheel fatigue.

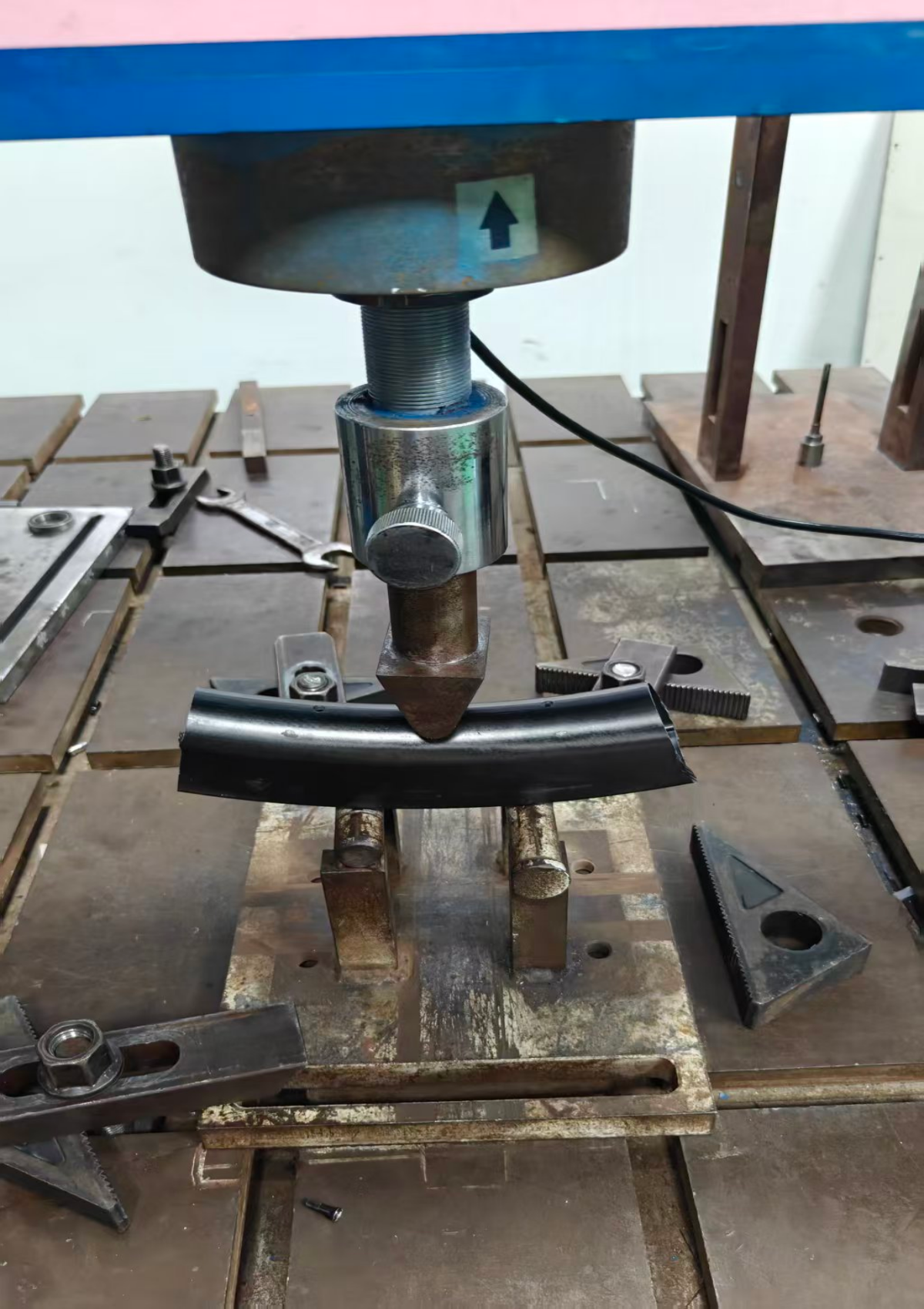

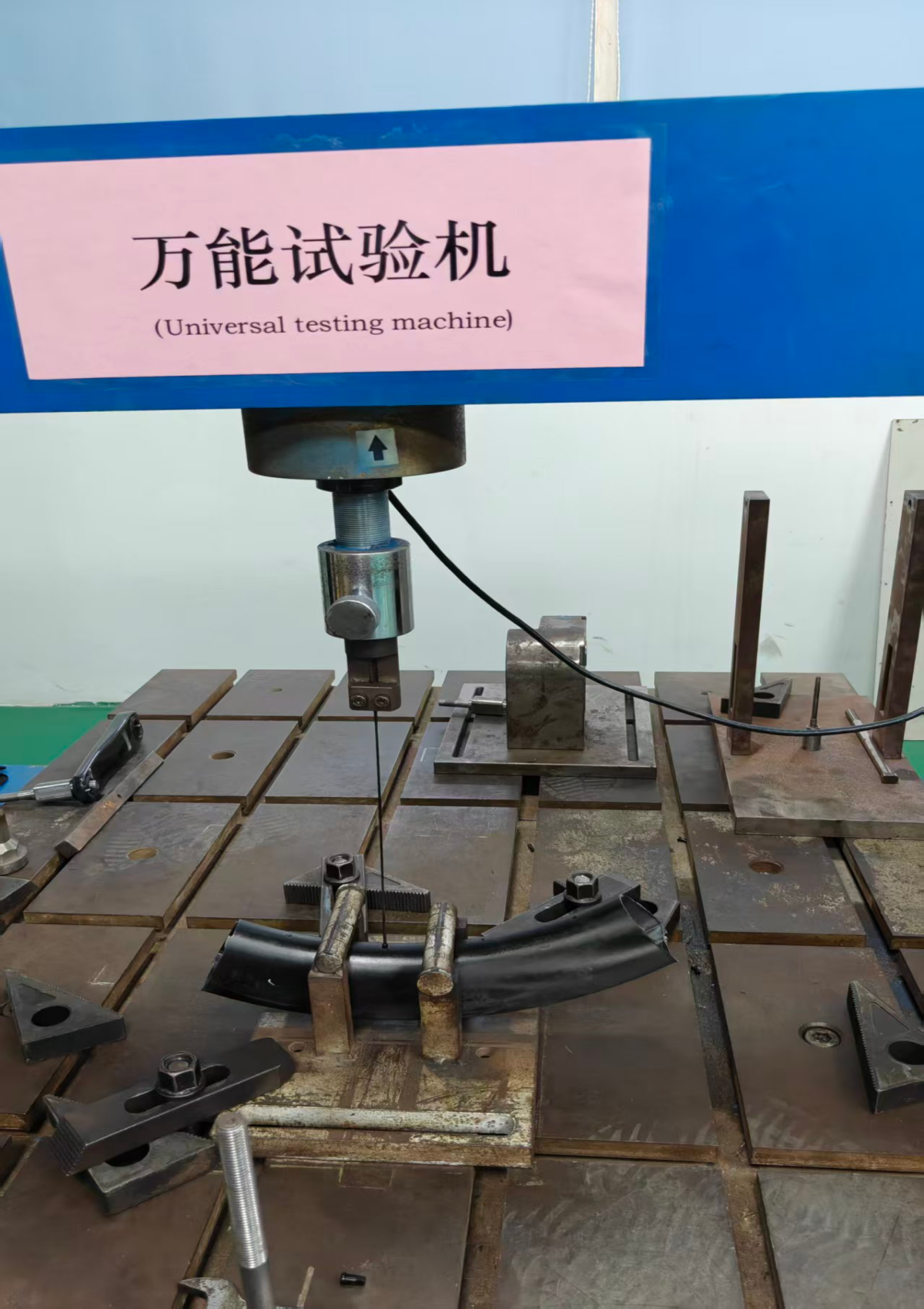

Spoke Hole Ultimate Strength

Tests maximum pull-out force each spoke hole can withstand.

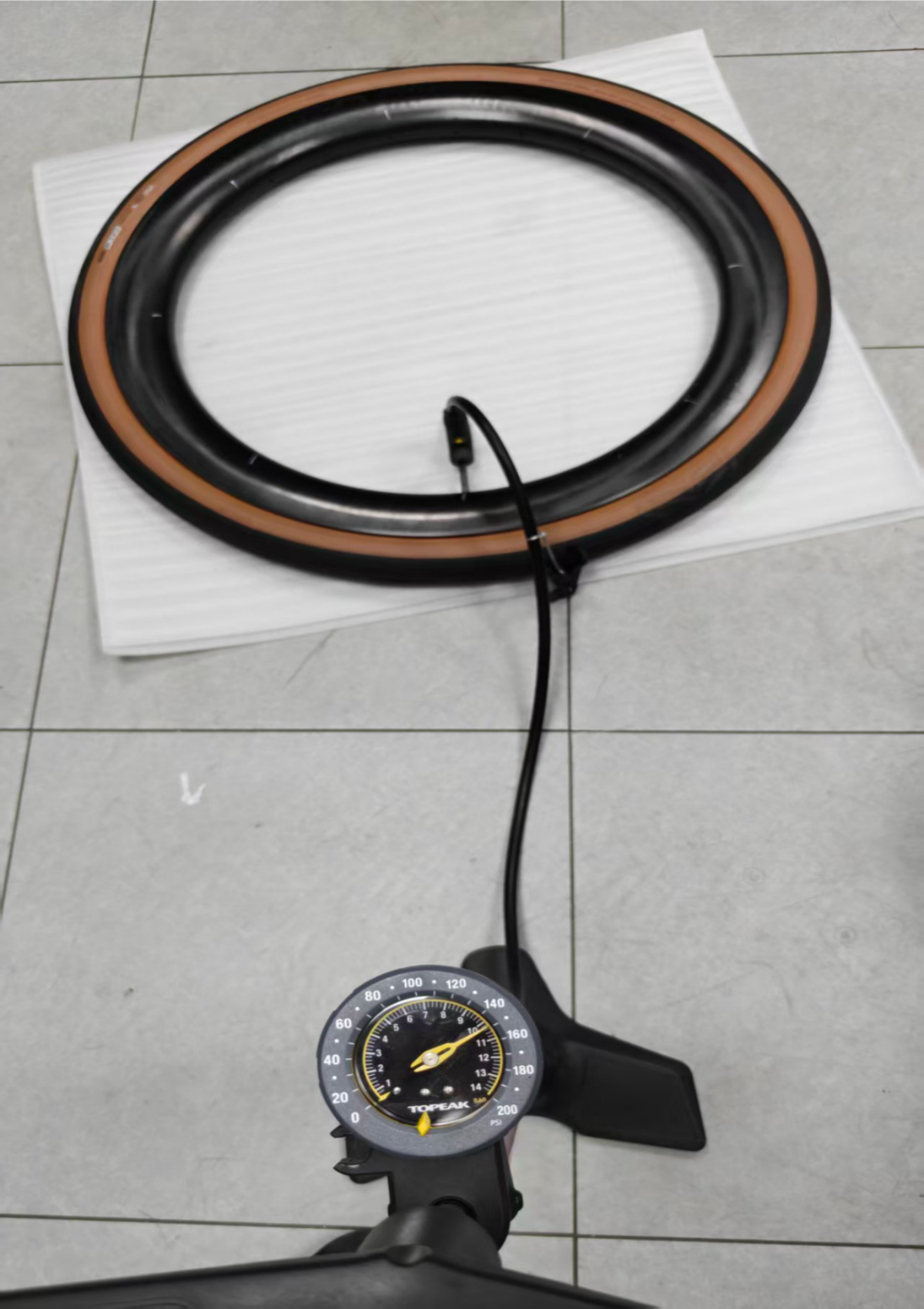

Inflation Pressure Test

Subjects tubeless tire beds to extreme air pressures for safety margin.

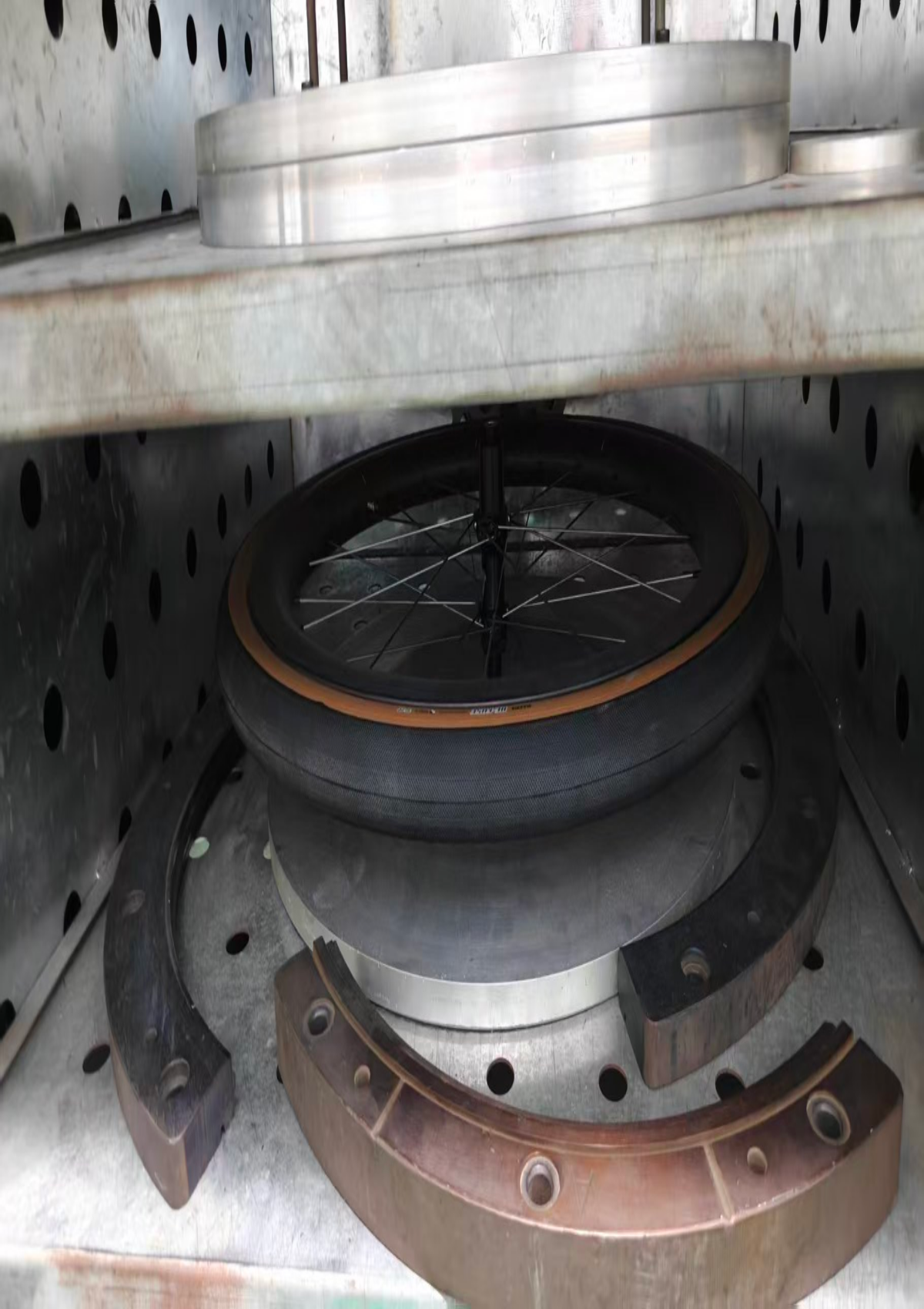

Environmental Chamber Test

Tests temperature cycles (-20°C to +80°C) for thermal stability.

📷

图片待补充

Test 8 Placeholder

Description for the 8th test will be added later.

Rigorous Quality Control & Inspection

Every carbon rim undergoes multi-point optical and manual inspection. From surface finish verification to structural dimension checks, our strict quality control ensures flawless craftsmanship before packaging.
