- DK
- XIAMEN
- 7-15 days
- 10000 PCS
- CS-T32

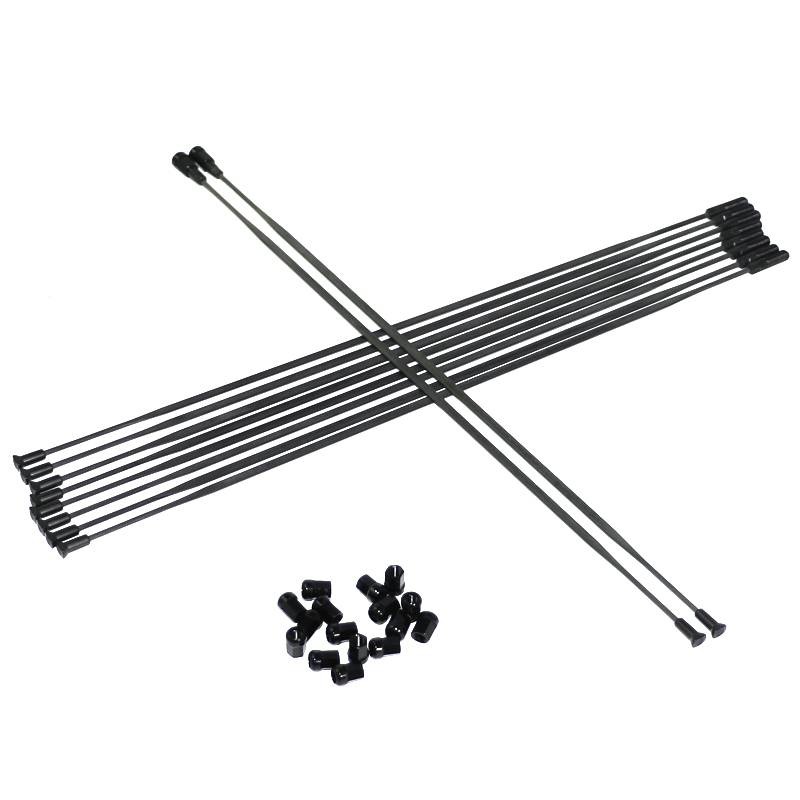

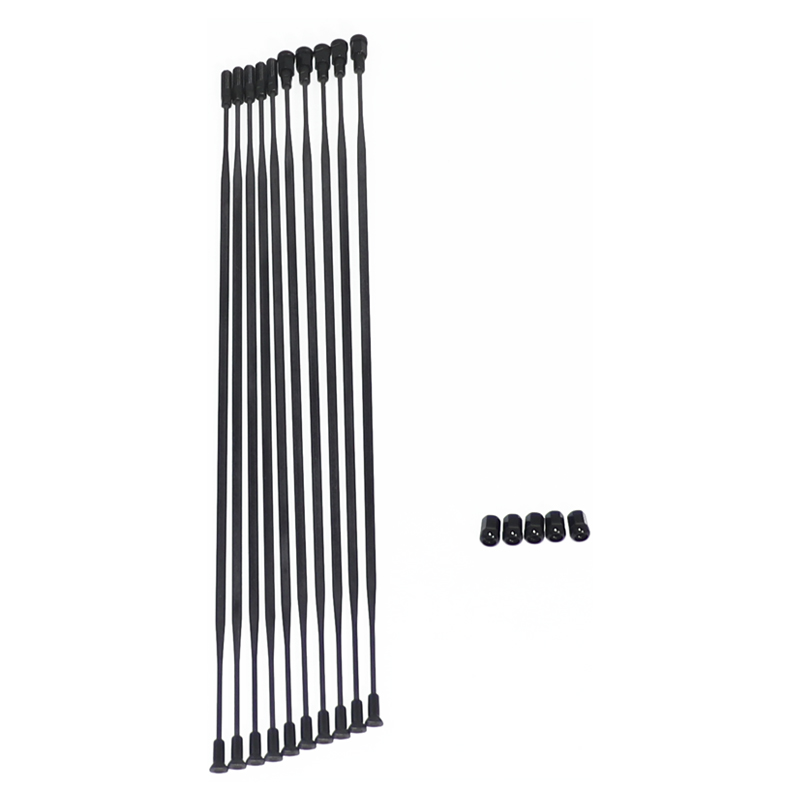

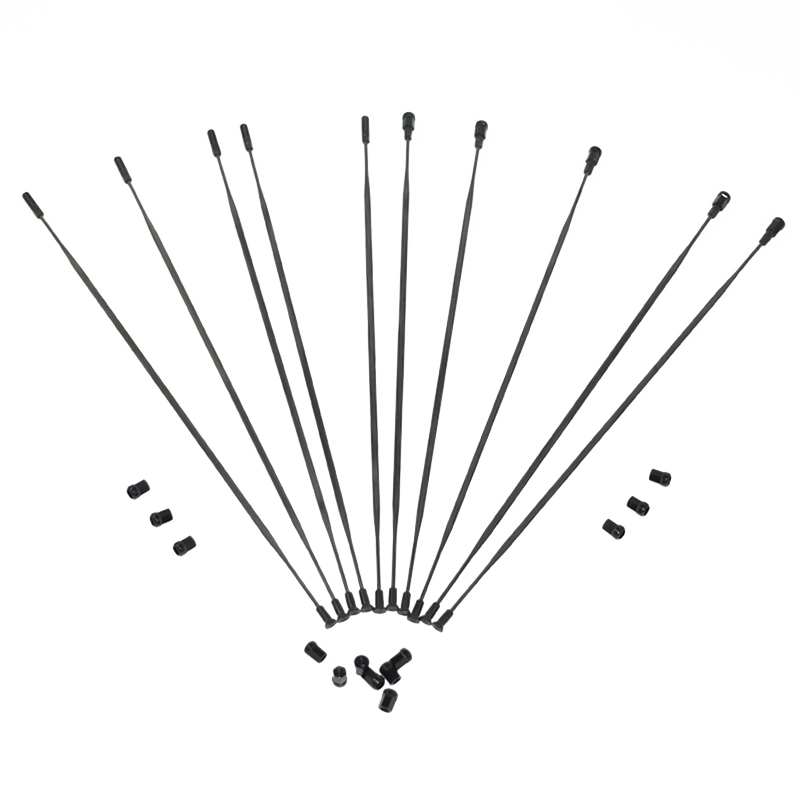

*Super light 2 grams carbon fiber road and gravel bicycle spokes.
*100% glue-free mechanical lock, light weight Titanium nipples and threads.
*Reduce 120 grams weight compared to steel spokes wheels(24/24 holes).
*Combined the advantages of carbon spokes and steel spokes, light weight, high tensile strength, more comfortable riding.
Ⅰ.Features:
-1) Diameter φ1.7mm, 3.2mm width carbon fiber bladed spokes for road or gravel bike wheels.
-2) 2 grams super light weight, high stiffness, high tensile strength, for high speed road races.
-3) 100% glueless mechanical lock technology, light weight Titanium nipples and threads.

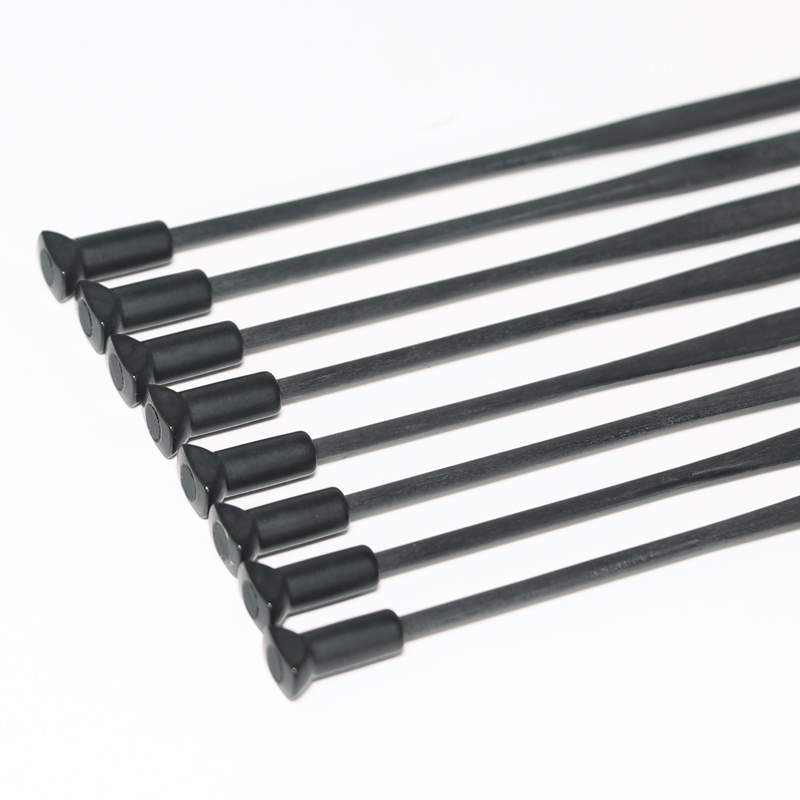

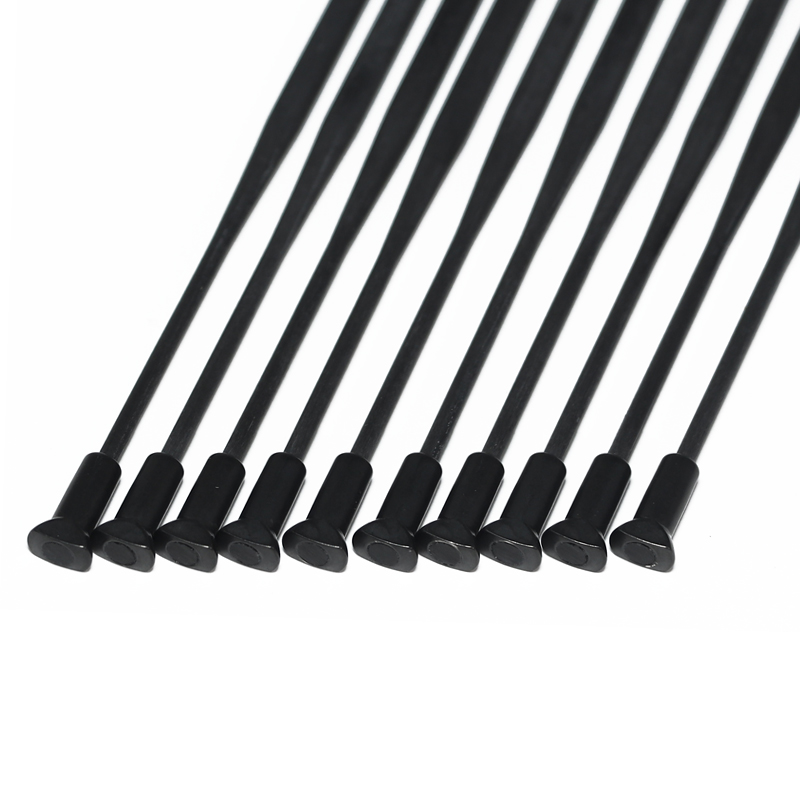

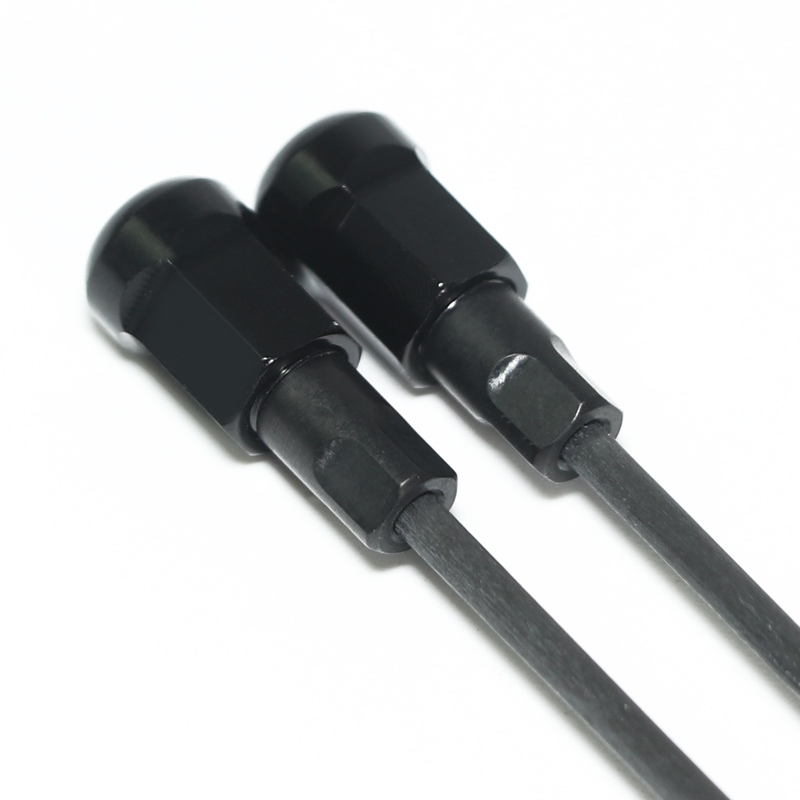

-4) T head design, better fitting and stability for wheel building and riding.

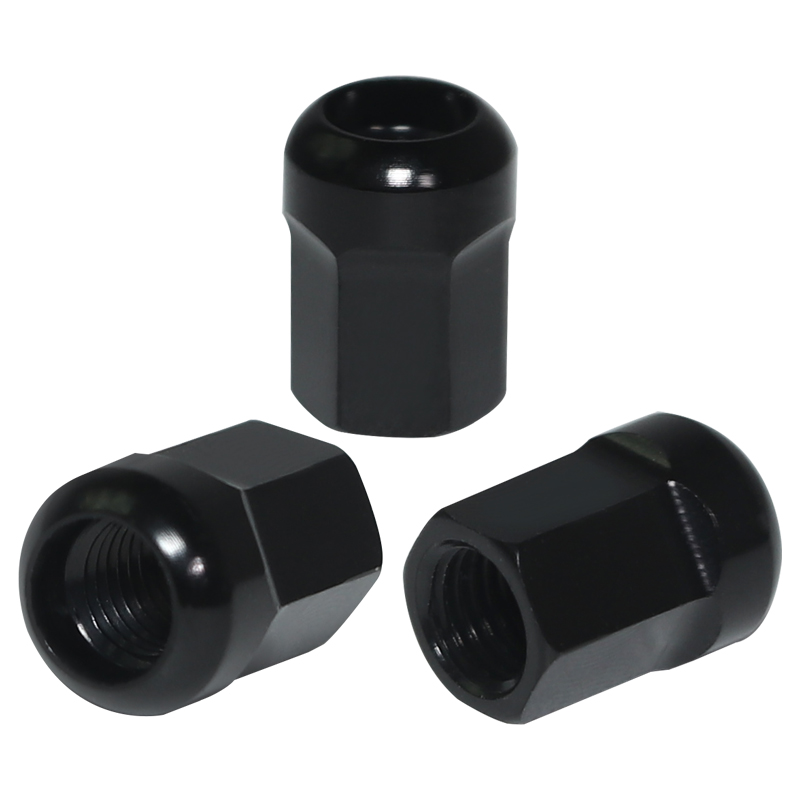

-5) New developed anti-drop nipples, don't need any glue during wheel building.
-6) Anode black on the surface of metal parts at both ends, better and unified looking as spoke body.
-7)Combined the advantages of carbon fiber spokes and steel spokes, light weight, high tensile strength, better cruising and riding performance.

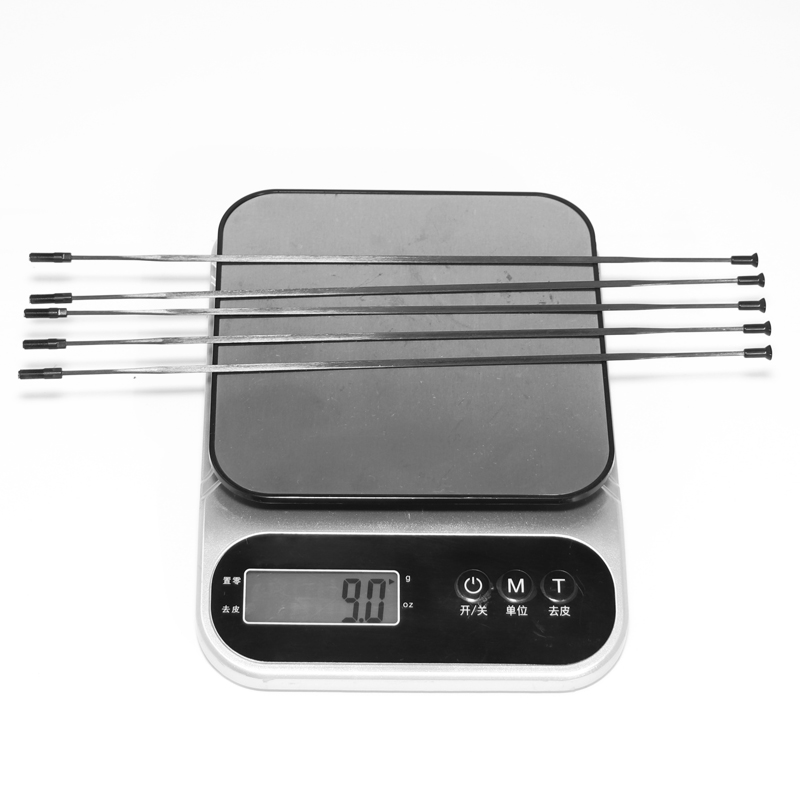

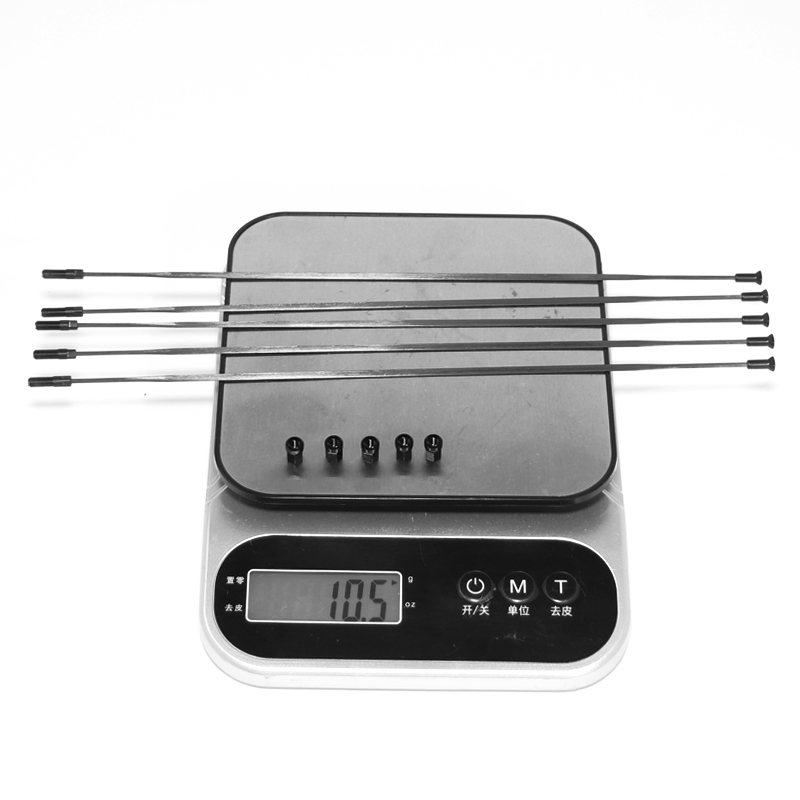

Ⅱ.Weight and Tensile Strength VS Stainless Steel Spokes:
|
Spoke |
Weight(260mm) | Tensile Failure Test |
| Carbon Spoke CS-T32 | 2.00 g | 4000N |
| Sapim CX-Ray | 4.36 g | 3000N |
| DT Aerolite | 4.28 g | 3000N |
Ⅲ.Available Spoke Length: 241~290mm

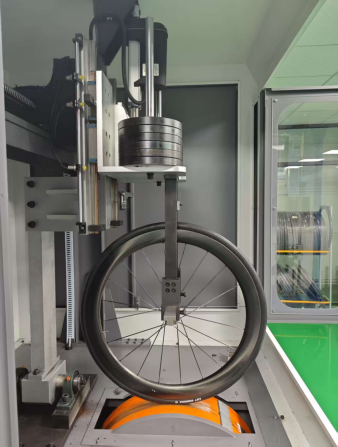

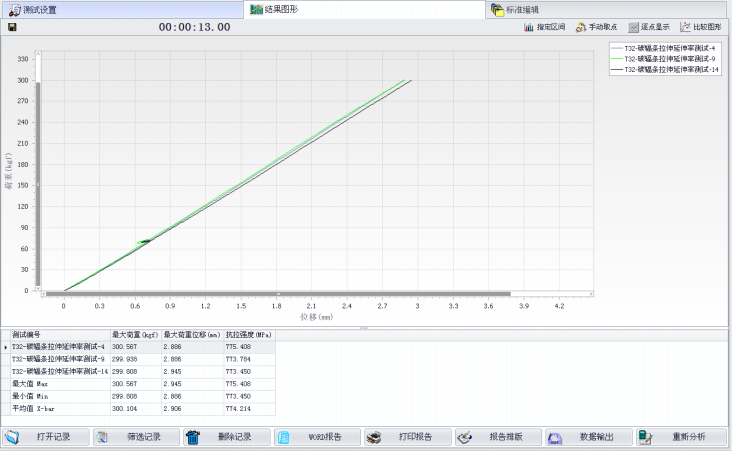

Ⅳ.Test Data: 300kg Tensile Strength Test
Ⅴ.Wheel Building( CS-T32 Carbon Spokes Need Special Tools and Ways to do Wheel Building):
Ⅵ. High Tensile Strength and Flexbility Spoke Photo:
Ⅶ.FAQ About CS-T32 2gr Carbon Spokes:
-1) Can the carbon spokes cross with each other like steel spokes?
-Yes, 2x cross, or 3x corss all ok.
-2) What is the suggestion spoke tension for this carbon spoke?
-Suggestion spoke tension is 110~130 kgf
-3) Can the carbon spokes used for MTB or Gravel Bikes?
-Yes.
-4) This carbon spoke are straight pull and J-bend both available?
-No, only straight pull is available
-5) What is the warranty for this carbon spoke?
-1 year.
-6) What is the production technology for this regular carbon spoke?
-We used gluless mechanical lock technology to combine the carbon spoke body and metal parts, there is no glue inside them, so can achieve high tensile strength.
-7) This carbon spoke is compatiable for all hubs?
-No, the bigger spoke head design requires a special hubs to match, currently we few models light weight carbon spoke hubs to match.
-8) Do you need any glue to attach on the nipple area during wheel building?
-No, we have own developed new anti-drop nipples, don't need any glue anymore.
Ⅷ.Carbon Spoke Video Presentation:
Ⅸ.CS-T32 Carbon Spoke Drawing:

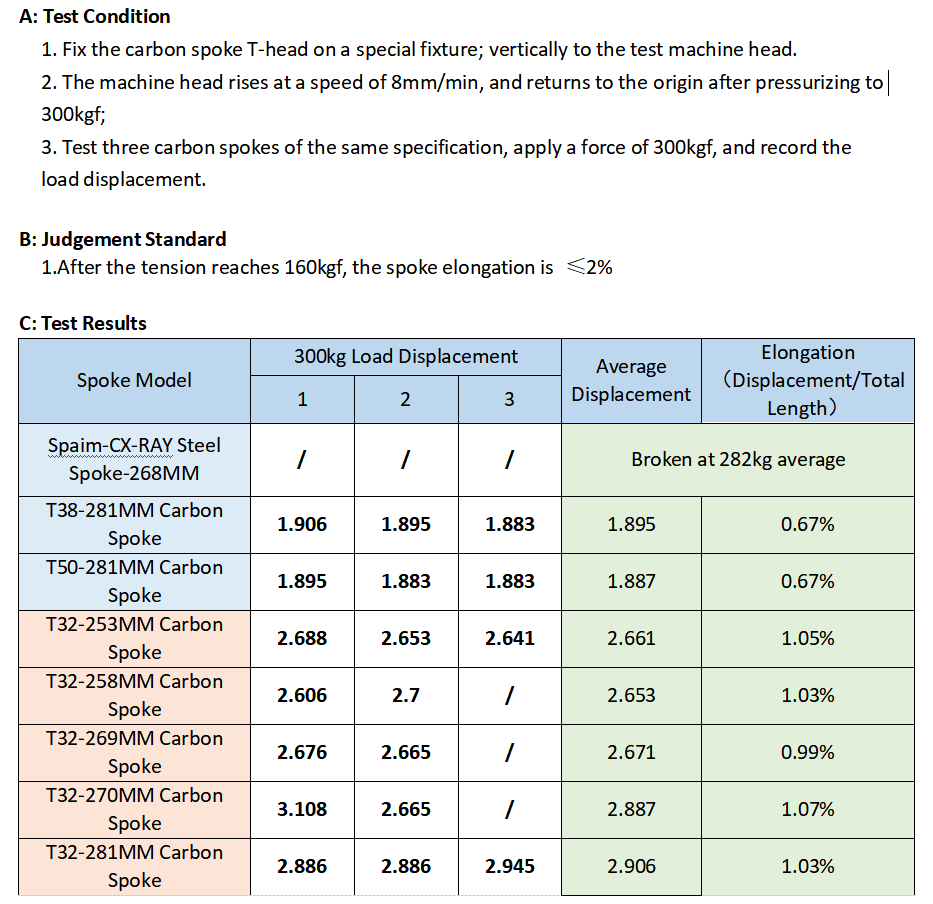

Ⅹ.Test Report:
DK Composite Test Report Carbon Spoke T32.pdf
